Project 4 of Term 2 of the Udacity Self-Driving Car Engineer Nanodegree Program
The assignment for this project was to control a simulated car driving around a simulated track using PID controllers. Because Ackerman steering is so non-linear, a PID controller is not an ideal method to control steering on a car, but it works well enough for the purposes of this project.
My approach to the project was to use two PID controllers. One controller regulates the speed of the car, which has a constant setpoint of 40 MPH. The simulator provides speed feedback on each update, and the speed error is simply calculated by subtracting the current speed from the speed setpoint. The output of this controller is fed into the throttle/brake control of the simulated car. The second controller is used to steer the car. It takes in the cross-track error, which is provided by the simulator on each update. From the cross-track error, this PID controller outputs a steering angle for the simulated car.
For this project, I created a generic PID controller class. The proportional, integral, and
derivative error gains are set in the constructor of the PID
class. The PID
class has only
two other methods, Update()
and Reset()
. Update()
is called each time a new error value is
available from the simulator. It updates the derivative and integral terms, then calculates and
returns the output for the current time step. The Reset()
method resets the integral gain to 0 so
that it does not wind up during manual takeover, which would cause erratic behavior when the car
resumes autonomous mode.
For this project, I tuned the PID controller manually. For the speed controller, the gains were relatively easy to tune, and precise speed tracking was not very important. For the steering controller, I began by increasing the proportional gain until the steering became unstable--the car swerved uncontrollably back and forth, then increased the derivative gain. I alternately increased these gains until the steering was stable, but aggressive enough to complete the tightest turns on the track. I tested the stability of my controller by perturbing it--manually driving to the edge of the track and resuming autonomous mode. The controller was able to recover without driving off the road. For the steering controller, I did not use any integral gain because I felt that it made the steering less stable. I did use a very small integral gain on the speed control, because I found that it reduced the speed error. My final PID gains are shown below:
kP | kI | kD |
---|---|---|
1.000 | 0.001 | 0.500 |
kP | kI | kD |
---|---|---|
0.120 | 0.000 | 1.000 |

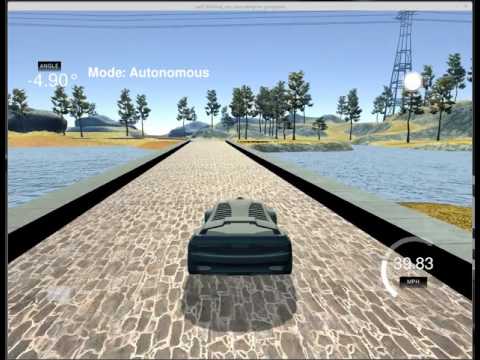

The steering controller is still somewhat under-damped, which causes the car to swerve some, but the car can safely navigate the full track at 40 miles per hour indefinitely. I think that the steering control is inherently limited by the nonlinearity of the steering model, and by the fact that cross-track error does not tell you much information about what you want to drive. In a steep turn, for example, the cross-track error tells you nothing about the curvature of the turn. The steering controller must be very aggressive to turn the car sharply enough without driving off the road. On a straightaway, the same aggressive controller is undesirable. You can see my car negotiate the simulator track here:
- cmake >= 3.5
- make >= 4.1
- gcc/g++ >= 5.4
- uWebSockets == 0.13
- Udacity Term 2 Simulator. You can download these from the project intro page in the classroom.
- Clone this repo.
- Make a build directory:
mkdir build && cd build
- Compile:
cmake .. && make
- Run it:
./pid
. - Run the simulator as well and start the Project 4 simulator to see it drive around the track.
