A graphical user interface designed for trajectory programming by demonstration for UR5 robot.

• ROS kinetic
• Qt 5.9.1

• Install the pcl_tracker package and finish the preparation steps.
• Follow the installation guidance in universal_robot package.
• Add a new group_state named "forward".

roscd ur5_moveit_config/config
sudo gedit ur5.srdf

append the following contents to the file.

<group_state name="forward" group="manipulator">
    <joint name="elbow_joint" value="1.5707" />
    <joint name="shoulder_lift_joint" value="-1.5707" />
    <joint name="shoulder_pan_joint" value="0" />
    <joint name="wrist_1_joint" value="-1.5707" />
    <joint name="wrist_2_joint" value="-1.5707" />
    <joint name="wrist_3_joint" value="0" />
</group_state>

• Modify the xacro file of UR5 robot. Append a fix link "pen" to "tool0" link.

roscd ur_description/urdf/
sudo gedit ur5.urdf.xacro

append the following contents at the end of the file:

<xacro:property name="pen_length" value="0.125" />
<link name="${prefix}pen"/>
<joint name="${prefix}tool0_fixed_joint-pen_fixed_link" type="fixed">
    <origin xyz="0 0 ${pen_length}" rpy="0 0 0"/>
    <parent link="${prefix}tool0"/>
    <child link="${prefix}pen"/>
</joint>

NOTE: Modify the value of "pen_length" parameter according to actual condition.

• Install the ur_modern_driver package if you are using a UR version 3.0 and above, and make sure the robot is well connected.
• The implementation of the system requires a Kinectv2 sensor (Kinectv1 is fine but you may need to modify some of the files in the src folder).
• The camera should be well calibrated and fixed on a shelf above the working platform (see also iai_kinect2/kinect2_calibtation).
• The extrinsic parameters of the camera in the frame of UR's base link shoud be published through tf messages. (see also tf_base2camera and transform_publisher).

Step 1: clone the repository into your own workspace

cd ${PATH_TO YOUR_WORKSPACE_FOLDER}/src
git clone https://github.com/Zhang-Hongda/move_ur5_qt

Step 2: building

catkin_make

Step 3: activate the workspace

source ${PATH_TO YOUR_WORKSPACE_FOLDER}/devel/setup.bash

To start the program, first run:

roslaunch pcl_tracker demo.launch

NOTE: Modify the launch file if you don't want to use the transform_publisher package to publish the extrinsic parameters.

Then run:

roslaunch move_ur5_qt move_ur5_qt.launch

The interface should look like this:

• The "Robot Info" tag displays information about the status of the robot and information concerning motion planning and execution
• The "Scene Info" tag displays information about the pose of the marker in robot's frame and information concerning trajectory demonstration.
• The command panel on the right allows users to control the trajectory programming process.
  • The "Ros Master" panel
    • Users can specify the url and ip for connecting the ros master.
    • Check "Use environment variables" if you want to use the environmental configuration of your computer (recommended).
    • Check "Remember settings on stratup" to allows the system to load the current configuration during startup next time.
  • The "RPD Control Panel"
    • To strat the tracking process, check the "Start Tracking" button.
    • The frequency of capturing the tf messages of the marker can be modified in the spinbox (default value is 1 Hz).
    • To record the trajectory of the moving marker, click on "Record" button and move the marker along the desired trajectory.
    • Pause the recording process by clicking on "Stop" button.
    • Click "Finish" to indicate the termination of the trajectory demonstration process.
    • Check "Use timer" to allows the system to terminate the recording process automatically after countdown. The time of the countdown can be modified in the spinbox.
  • The "Plan and Execute" panel
    • After finishing the step of trajectory demonstration, users can plan and execute the recorded trajectory by clicking "Plan" and "Execute".
    • The motion planning and execution are implemented through moveIT.
    • Check "Threshold" to set a threshold for the completion rate of the motion planning (default value is 80%).
  • The "Save and Load" panel
    • Users can save the recorded trajectory in a .xml file.
    • Users can load the trajectory file by clicking on the "Load file" button.
    • Modify the path in "Save to file" to specify the path for saving trajectory files.
    • If the path in "Save to file" is empty, a dialog will show up to help you find a path for saving files.
  • The "Scene Objects" panel
    • This panel allows users to add and delete collison objects in moveIT planning space.
    • By default, the system adds a table and a shelf in the space, but you may need to modify the models according to your own situation (a tutorial can be found at Planning Scene ROS API).
    • The "New Objects" and "Load Objects" functions are currently in developing, which will allow users to draw 3D collision objects and place the objects in the planning space.
    • To avoid collision, you can also use octomap.

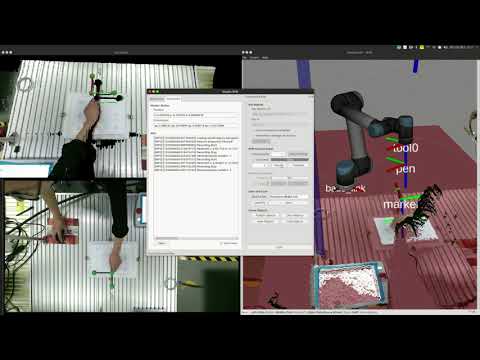

• A quick guidance of the developed system.

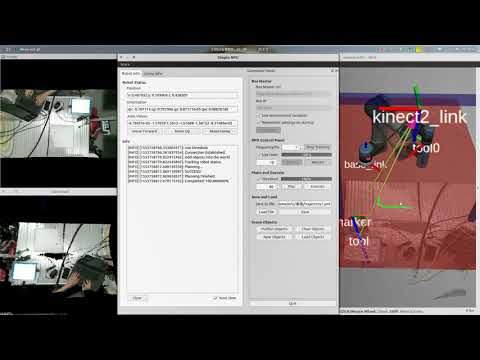

• Trajectory programming by specifying five waypoints.

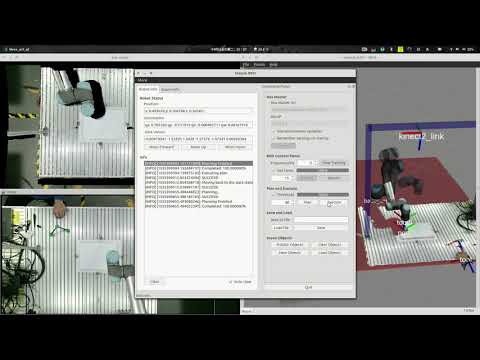

• Trajectory programming with a continuous curve.


• A hand gesture recognition system has been developed.
• Gesture commands
• GUI

To start the program, run:

roslaunch move_ur5_qt T-RPD.launch

• Simply click on "Enable Gesture Control" button to enable gesture control.

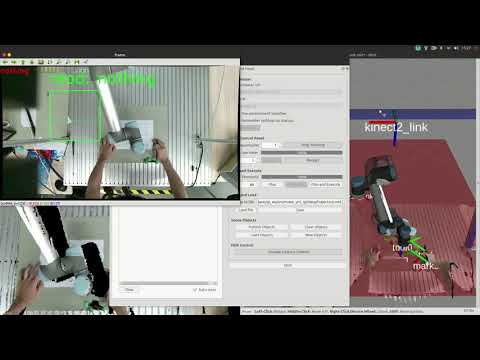

• Now you can control the state of the system by performing gestures under the camera within the green box.
• The hand is segmented by applying an HSV filter. Users can double click on the image to specify a specific color.
• Gestures are recognized and published by an ROS node.
• The node publishes gesture information through topic "gestures".

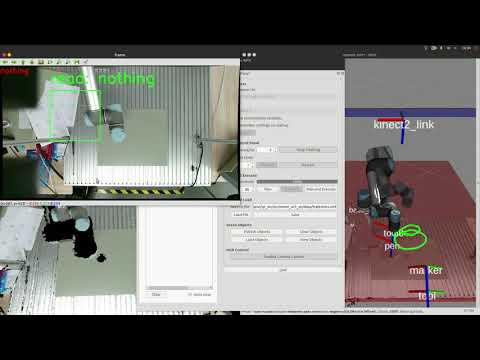

• Trajectory programming system with hand gesture recognition.

• Programming a 3D trajectory with the system.
