Hi Authors,

Are there any specific alterations to the configuration for 12->48khz upsample?

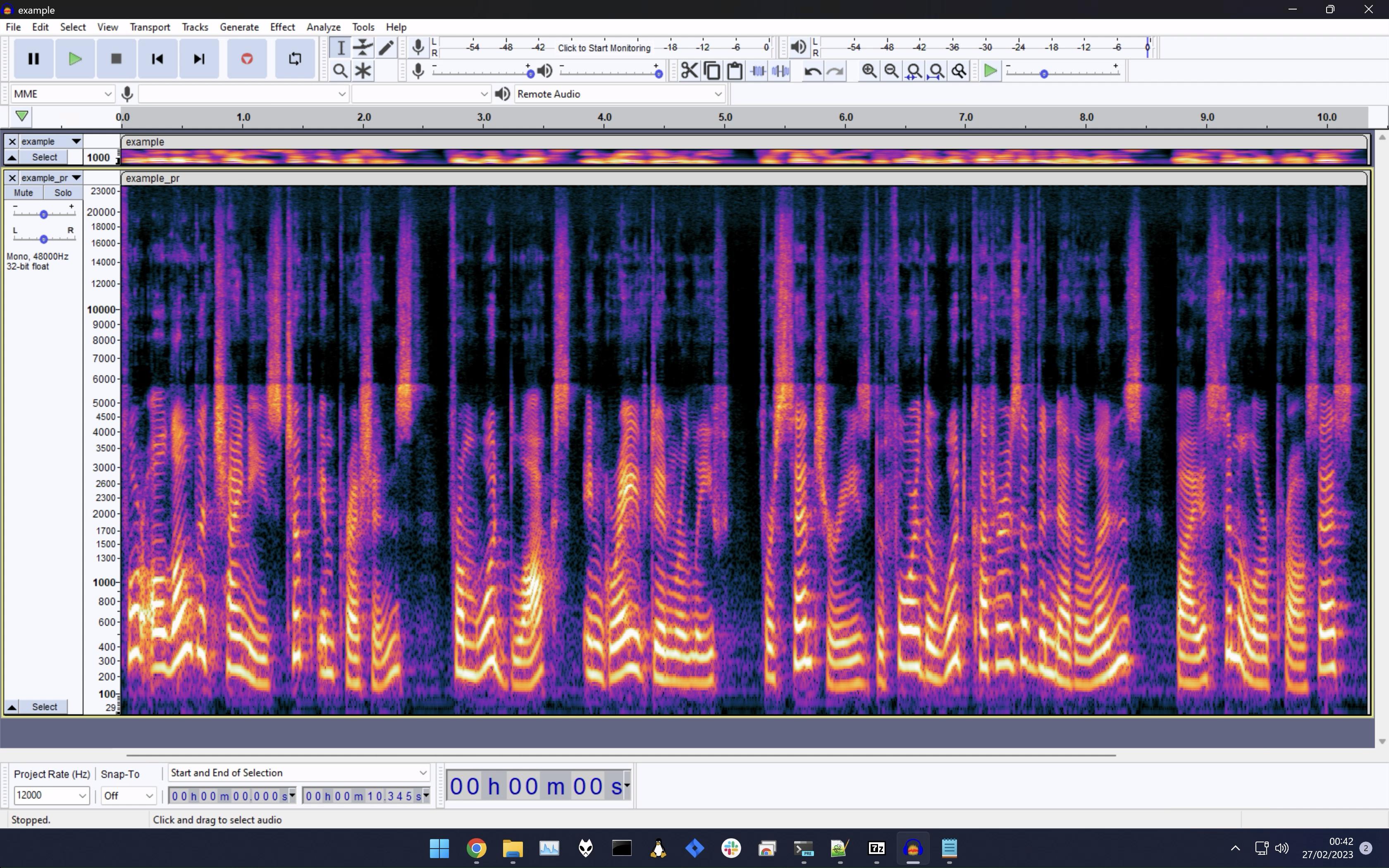

I seem to be generating a spectrogram with a distinct cut such as the one seen in Fig3 (before spectral upsampling) on longer voice clips

Thanks, appreciate the work

Hey there!

Awesome project, thank you for sharing.

Not sure if I need to train the models, but i was expecting the provided checkpoints to work out of the box for the normal speech data.

Here is a notebook to predict
https://colab.research.google.com/drive/1s8nk1Iadwajd3cFoTqis8nZf_F2Tqgaw?usp=sharing

Input: https://drive.google.com/file/d/1c5sM6CoOQfD8OCy7GRr4qJ9RxchllA3B/view?usp=drive_link

Output: https://drive.google.com/file/d/1FCJCXVwKXN3WXKXw7PdBlk7Up_6Ay0jv/view?usp=drive_link

Am I doing something wrong, or provided checkpoints just won't generalize?

Have you made any progress applying the algorithm to real-time streaming audio?

I am trying to train your model for the task of bandwidth extension, where the input observations are lowpassed with a certain lowpass filter at a given cutoff frequency. This differs from the super-resolution or upsampling scenario, where the lowpass filter is an antialiasing filter, which cutoff frequency is around the Nyquist of a low-resolution signal.

I understand that the spectral upsampling you propose serves as a strong regularization strategy to prevent filter overfitting. I am just wondering if your method could be considered as a baseline in my case, given that the spectral upsampling method you propose is not applicable. You mention in the paper that you noticed some artifacts when this trick was not used, but, does it still work despite that? Or it affects the GAN training stability somehow?

I'm now training a couple of models to bandwidth-extend some piano music (MAESTRO) from a lowpassed version at 1kHz and 3kHz. I'm training with a single lowpass filter, expecting the model to overfit to it. So far, it kind of works but the quality is still not great. I have only trained for half a day, so I'll better wait.

It appears it is taking >30GB of memory for inference. What are the parameters I can set which can reduce the demand?

Thanks!

Hello Mr author

I had some couple of Questions I hope they get answered.

So I want to train a 24khz to 48khz model for singing raw vocals that have no background music nor Reverberation at all,
just pure raw studio vocals but then I have some Questions.

1-These vocals are in different languages English has approximately 50 hours of vocals, Chinese 90 hours,
Korean 2.5 hours , Japanese 6.6 hours and Italian 1 hour. So the question is, would having different languages confuse and corrupt the algorithm and make the output bad and hallucinating or would it have a greater good impact or should I only train the English ones ?

2- I Should keep my almost 150 hours dataset alone and not mix it with MusDB dataset that has musical mixtures and full songs with instrumentals on, right?? just treat this 150 hours dataset like VCTK, right?

3- Some of these raw vocals aren't transcribed , is this okay ? Does aero train and accept non transcribed data.

4-I Don't really understand FFT , hop lengths and window sizes thingy. What will produce the best quality out of
these parameters for my case which I stated above? The (64/512) or the (256/1024) or (256/512) or (128/512)?

And Also how to know the configuration aka FFT , hop lengths and window sizes of my dataset and how to convert my
dataset to the specific configuration that I want out of the 4 or the one that you will recommend.

I don't mind the training time I want the most optimal and the most highest quality for upscaling so if there is another configuration That isn't mentioned above tell me about it.

Again sorry if I'm asking basic questions, And thanks for your time.

Hi, thanks for great work.

Could you share training logs of your trained model.
Since i am trying to make 24k -> 48k aero model, it would be great help if you can share some training logs.

I trained the model by myself and found there was a line of artifacts at at the verge between existing and extended frequency bands using the model I trained. I read the paper related to this repo and found the three reasons provided in the paper for this phenomenon didn't exist in my training process. I don't know why.
I guess maybe it's because of the process i transformed .flac to .wav for the dataset VCTK. So could you please tell me how did you transform .flac to .wav?
Thank you!

As I understand form code there is hardcoded CUDA support. So I have changed device to cpu and replaced model.cuda() with model.cpu() But when I run predict I got strange error:

RuntimeError: Argument #4: Padding size should be less than the corresponding input dimension, but got: padding (256, 256) at dimension 2 of input [1, 2, 160]

I don't know is it problem with cpu or something else.

Hiya, thanks for your great work, it really does work well.

I was trying to train my own model and hit on a few small hitches that I hope to solve for future users of the code:

1. When going over the instructions to resample the VCTK files, it took me a while to debug that you need to pass the full sample rate (e.g. 16000) and not the sample rate in KHz, as is given in the example command-lines (16). A small update to the readme would be nice for future users (e.g. --target_sr 4 -> --target_sr 4000).
2. Converting the audio from .flac (VCTK default) to .wav is also a necessary step for the scripts (though note that sox has no issue reading .flac files)
3. Creating configuration & dataset .yaml files: I copied the provided 4-16 files and modified appropriately.
4. One of the files, p271/p271_069_mic1.wav has exactly 96001 samples, so for the 12-48KHz task, its length is rounded up to 2 sections for the high-res dataset, but after downsampling it's rounded down to 24000 samples, so it's only one section. This breaks the training code unfortunately. I fixed it by manually trimming the file by one sample (sox p271_069_mic1.wav p271_trimmed.wav trim 0 -1s) and regenerating the .egs files.

I was left with a few questions:

1. The paper says the setting for 12-48 was nfft=1024 and hop=256, batch size 8. The models you provide in the drive say 512/256 and 512/128. What should I believe?
2. Does the code support resuming a training run?

Thanks again for the paper and the code - the results are good and the code is as well.

I have created virtual enviroment, where I installed all the requirements.txt into that envrioment. However, although I add the PATH variable of the installed Sox, when I call the resample_data.py I got the error SoX is not found. My OS is Win11 btw.

Hello,

I'm trying to use predict to improve some old music have, as was done here in your project:

Section Ⅴ: Examples for samples upsampled from 11.025kHz to 44.1kHz.
The model is trained on the train set of the MusDB-HQ dataset.

but I think I need a msudb experiment yaml file. I was able to download the checkpoint.tf, and tried to use the output naming convention to predict, but there is not a matching experiment yaml file I believe. The dset training hydra config would be nice too if possible.

Thanks much, and cool project.

I am very interested in your paper, thank you for sharing.

May I ask how different models are compared, such as how many epochs are appropriate for training nuwave2. Is the code of the comparison model (such as nuwave2) merged into the AERO code to run the comparison results?

Hi,
As you've done in your paper, I'm also trying to train BEHMGAN with 44.1 kHz recordings but I'm having issues -- the frequencies generated above 4kHz are shifted some miliseconds in time.

Did you have this kind of issue at some point in training? If no, could you share the parameters of the conf file used for this setting?

Thanks

Wallace

Hi Authors,
When I run train.py, it prompts an error as below.

Traceback (most recent call last):
  File "/workspace/aero-main/train.py", line 135, in main
    _main(args)
  File "/workspace/aero-main/train.py", line 127, in _main
    run(args)
  File "/workspace/aero-main/train.py", line 54, in run
    tr_dataset = LrHrSet(args.dset.train, args.experiment.lr_sr, args.experiment.hr_sr,
  File "/home/wsd/workspace/aero-main/src/data/datasets.py", line 136, in __init__
    assert len(self.hr_set) == len(self.lr_set)
AssertionError
ERROR conda.cli.main_run:execute(49): `conda run python /workspace/aero-main/train.py dset=12-48 experiment=aero_12-48_512_256` failed.

prompt error : assert len(self.hr_set) == len(self.lr_set),then I print the length of both :

len(self.lr_set): 64349
len(self.hr_set): 64353
I read the code about the length of segment,The logic is to segment the audio based on different sampling rates.

class Audioset:
    def __init__(self, files=None, length=None, stride=None,
                 pad=True, with_path=False, sample_rate=None,
                 channels=None):
        """
        files should be a list [(file, length)]
        """
        self.files = files
        self.num_examples = []
        self.length = length
        self.stride = stride or length
        self.with_path = with_path
        self.sample_rate = sample_rate
        self.channels = channels

        for file, file_length in self.files:
            if length is None:
                examples = 1
            elif file_length < length:
                examples = 1 if pad else 0
            elif pad:
                examples = int(math.ceil((file_length - self.length) / self.stride) + 1)
            else:
                examples = (file_length - self.length) // self.stride + 1
            self.num_examples.append(examples)

I am using the same dataset as the author, which is VCTK (excluding p315 and s5).
can you tell me How should this situation be handled?

Hello,
I wondered if you might have a comment on how to improve the clarity of recordings such as these:
https://fsi-languages.yojik.eu/languages/FSI/fsi-french-basic.html

They are from old (reel-to-reel) tapes, with some kind of NR/noise gate, and low-bitrate compression.

Maybe I could make a dataset of original and (simulated) degraded recordings by running clean recordings through this cassette-tape simulator VST plugin?

https://www.wavesfactory.com/audio-plugins/cassette/
https://github.com/teragonaudio/MrsWatson

Thanks for your time.

Hi Authors,

I can't find any papers that beat your implementation - what a milestone!
I am considering training the model for 16khz - 48khz and 22khz - 48khz.

Could I ask what was the hardware you used and the steps of the provided checkpoints were? Any additional information regarding the parameters for training would be extremely helpful, I can provide the checkpoints to this repo for open-source use once they're trained.

Again, fantastic stuff here! Thank you 👍

I am using Windows. I have clonned the github repo and in the
AERO\lib\site-packages\torch_utils.py function reraise gives an soundfile.LibsndfileError:
error. How can I fixed it?

Hi, as you may have noticed, I've been developing a fork of this in an attempt to repurpose to train models for upscaling AM and FM radio recordings. In any event, while researching possible ways to improve speed and memory consumption, I started looking at 16-bit floating point formats. The standard float16 doesn't appear to have enough range to be useful for this project (I ended up with nan values relatively quickly), but bfloat16 (which uses the same number of exponent bits as float32) seems to work quite well and does speed up training a bit and has a significant impact on memory usage. You can see an example of its implementation in a recent commit I made. Note that I did have to restructure the code so loss calculation is done using standard 32-bit float values (as recommended by pytorch).

Hello, I ran into this problem when training the aero model:
assert len(self.hr_set) == len(self.lr_set) AssertionError

Hi,
I have used the pre-trained checkpoint for 16-48. My original audio file is 16Khz. I want to perform super-res to enhance the quality of speech. I have replaced the checkpoint path in the main_config.yaml. But there is no audio in the output that I'm getting, it's just a silence audio. Any idea why that might be the case?

Thanks in advance !

Regards,
Harsh

Hello.

I want to improve audio of my recordings

I didn't understand from readme that how can I achieve this

here my video that I want to improve. so what do I need to do? I am not interested in training

https://youtu.be/2zY1dQDGl3o

I am trying to run 12-48 / aero-nfft=512-hl=256
Although I have no idea what is 512 and 256

installed all requirements

run my command like this and got error

python predict.py dset=4-16 experiment=aero_4-16_512_256 +filename="D:\86 se courses youtube kanali\aero\5dk.mp3" +output="D:\86 se courses youtube kanali\aero\5_v2dk.mp3" checkpoint_file="D:\86 se courses youtube kanali\aero\checkpoint.th"

I want to improve quality of this audio 5 min sound : https://sndup.net/stjs/

(env) D:\86 se courses youtube kanali\aero>python predict.py dset=4-16 experiment=aero_4-16_512_256 +filename="D:\86 se courses youtube kanali\aero\5dk.mp3" +output="D:\86 se courses youtube kanali\aero\5_v2dk.mp3" checkpoint_file="D:\86 se courses youtube kanali\aero\checkpoint.th"
D:\86 se courses youtube kanali\aero\env\lib\site-packages\hydra\_internal\defaults_list.py:251: UserWarning: In 'main_config': Defaults list is missing `_self_`. See https://hydra.cc/docs/upgrades/1.0_to_1.1/default_composition_order for more information
  warnings.warn(msg, UserWarning)
{'experiment': {'name': 'aero-nfft=${experiment.nfft}-hl=${experiment.hop_length}', 'lr_sr': 4000, 'hr_sr': 16000, 'segment': 2, 'stride': 2, 'pad': True, 'upsample': False, 'batch_size': 16, 'nfft': 512, 'hop_length': 256, 'model': 'aero', 'aero': {'in_channels': 1, 'out_channels': 1, 'channels': 48, 'growth': 2, 'nfft': '${experiment.nfft}', 'hop_length': '${experiment.hop_length}', 'end_iters': 0, 'cac': True, 'rewrite': True, 'hybrid': False, 'hybrid_old': False, 'freq_emb': 0.2, 'emb_scale': 10, 'emb_smooth': True, 'kernel_size': 8, 'strides': [4, 4, 2, 2], 'context': 1, 'context_enc': 0, 'freq_ends': 4, 'enc_freq_attn': 0, 'norm_starts': 2, 'norm_groups': 4, 'dconv_mode': 1, 'dconv_depth': 2, 'dconv_comp': 4, 'dconv_time_attn': 2, 'dconv_lstm': 2, 'dconv_init': 0.001, 'rescale': 0.1, 'lr_sr': '${experiment.lr_sr}', 'hr_sr': '${experiment.hr_sr}', 'spec_upsample': True, 'act_func': 'snake', 'debug': False}, 'adversarial': True, 'features_loss_lambda': 100, 'only_features_loss': False, 'only_adversarial_loss': False, 'discriminator_models': ['msd_melgan'], 'melgan_discriminator': {'n_layers': 4, 'num_D': 3, 'downsampling_factor': 4, 'ndf': 16}}, 'dset': {'name': '4-16', 'train': 'egs/vctk/4-16/tr', 'valid': None, 'test': 'egs/vctk/4-16/val'}, 'num_prints': 5, 'device': 'cuda', 'num_workers': 2, 'verbose': 0, 'show': 0, 'log_results': True, 'checkpoint': True, 'continue_from': '', 'continue_best': False, 'restart': False, 'checkpoint_file': 'D:\\86 se courses youtube kanali\\aero\\checkpoint.th', 'best_file': 'best.th', 'history_file': 'history.json', 'test_results_file': 'test_results.json', 'samples_dir': 'samples', 'keep_history': True, 'seed': 2036, 'dummy': '', 'visqol': True, 'visqol_path': None, 'eval_every': 25, 'enhance_samples_limit': -1, 'valid_equals_test': None, 'cross_valid': False, 'cross_valid_every': 5, 'joint_evaluate_and_enhance': True, 'evaluate_on_best': False, 'wandb': {'project_name': 'Spectral Bandwidth Extension', 'entity': None, 'mode': 'online', 'log': 'all', 'log_freq': 5, 'n_files_to_log': 10, 'n_files_to_log_to_table': 10, 'tags': [], 'resume': False}, 'optim': 'adam', 'lr': 0.0003, 'beta1': 0.8, 'beta2': 0.999, 'losses': ['stft'], 'stft_sc_factor': 0.5, 'stft_mag_factor': 0.5, 'epochs': 125, 'ddp': False, 'ddp_backend': 'nccl', 'rendezvous_file': './rendezvous', 'rank': None, 'world_size': None, 'filename': 'D:\\86 se courses youtube kanali\\aero\\5dk.mp3', 'output': 'D:\\86 se courses youtube kanali\\aero\\5_v2dk.mp3'}
[2023-02-09 14:36:36,703][__main__][INFO] - Loading model aero from last state.
[2023-02-09 14:36:38,679][__main__][INFO] - lr wav shape: torch.Size([2, 14400000])
[2023-02-09 14:36:38,680][__main__][INFO] - number of chunks: 30
Error executing job with overrides: ['dset=4-16', 'experiment=aero_4-16_512_256', '+filename=D:\\86 se courses youtube kanali\\aero\\5dk.mp3', '+output=D:\\86 se courses youtube kanali\\aero\\5_v2dk.mp3', 'checkpoint_file=D:\\86 se courses youtube kanali\\aero\\checkpoint.th']
Traceback (most recent call last):
  File "D:\86 se courses youtube kanali\aero\predict.py", line 77, in main
    pr_chunk = model(lr_chunk.unsqueeze(0).to(device)).squeeze(0)
  File "D:\86 se courses youtube kanali\aero\env\lib\site-packages\torch\nn\modules\module.py", line 1130, in _call_impl
    return forward_call(*input, **kwargs)
  File "D:\86 se courses youtube kanali\aero\src\models\aero.py", line 472, in forward
    x = encode(x, inject)
  File "D:\86 se courses youtube kanali\aero\env\lib\site-packages\torch\nn\modules\module.py", line 1130, in _call_impl
    return forward_call(*input, **kwargs)
  File "D:\86 se courses youtube kanali\aero\src\models\aero.py", line 120, in forward
    x = self.pre_conv(x)
  File "D:\86 se courses youtube kanali\aero\env\lib\site-packages\torch\nn\modules\module.py", line 1130, in _call_impl
    return forward_call(*input, **kwargs)
  File "D:\86 se courses youtube kanali\aero\env\lib\site-packages\torch\nn\modules\conv.py", line 457, in forward
    return self._conv_forward(input, self.weight, self.bias)
  File "D:\86 se courses youtube kanali\aero\env\lib\site-packages\torch\nn\modules\conv.py", line 453, in _conv_forward
    return F.conv2d(input, weight, bias, self.stride,
RuntimeError: Given groups=1, weight of size [48, 2, 1, 1], expected input[1, 4, 256, 7501] to have 2 channels, but got 4 channels instead

Set the environment variable HYDRA_FULL_ERROR=1 for a complete stack trace.
