Create a framework based on WEB technologies to ease developpment of complex application.

At the origin, this framework was developped to pilot and control an underwater drone.

• Fullstack JAVASCRIPT: nodejs for daemon process, browser js for HMI (webapp)
• Meta OS: set of processes which communicates each other through a soft bus (message broker)
• distributed architecture
• multi-application (like a smartphone)
• users management (acces rights)
• webapp using components
• propose a Map component which can be driven by an external process

• Each process called agent connect to an unique proxy process called the master (which port and host are known)
• An agent can publish data identified by a name (called a topic) to the master without knowing which processes uses it
• An agent can subscribe to a topic
• An agent can also provide a service identified by a name (like a RPC call) which return data to the caller
• An agent can call a service from its name
• Each agent has an unqiue name which identify it in the whole system

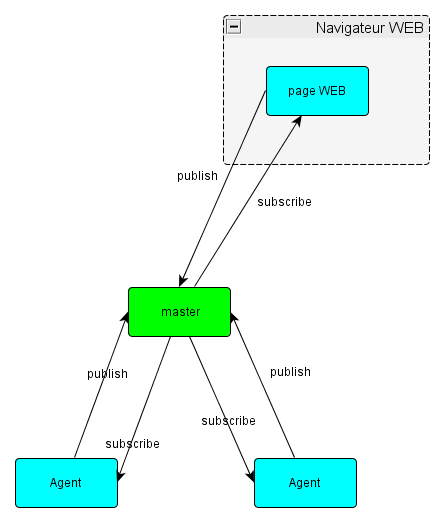

As you can see on the diagram above, a WEB page is seen as a normal agent.

• The communication between an agent and the master uses the WebSocket protocol
• The message are wrtitten in JSON format

{
    src:  string,
    time: number,
    type: string,
    topic: string,
    data: any
}

where:

• src is the name of the agent which emit the message
• time is the date when the message was emitted (number of milliseconds since midnight Jan 1, 1970)
• type is the type of the message:
  • register,
  • unregister,
  • notif,
  • cmd
• topic is the topic name
• data is the payload which can be anything (string, number, object, etc...)

the topic name can use the dot notation (like a namespace)

For example mapViewAddShape.default.circle_1 is a valid topic name

To subscribe to a topic, you can use wildcards (*)

For example if an agent subscribes to the topic mapViewAddShape.*.*, it will receive all topic matching this pattern

The master stores the last message for each topic

When an agent subscribes to a topic, it can ask to receive the last stored message

The master is a process like other agent coded with Nodejs

the port on which the master is listening as well as the host on which the master is running are defined in a global JSON configuration file config.json located in the config directory.

The master publish a topic named masterClients upon each connection/deconnection of an agent to the master.

The message payload contains a list of all agents connected to the master and for each agent the list of the registred topic

Example of payload:

{
    "launcher": [
            "launcherStartAgent",
            "launcherStopAgent"
        ],
    "shapeAgent": [
            "tacticViewCircleCreated"
        ],
    "bus": [
            "startBus"
        ]
}

The creation of a new agent is eased by the use of the agent.js module available in the lib directory.

In this example, you create an agent which publishes a topic called gpsData every 5 seconds

Create a new file named gpsProvider.js with the following content in the agents folder

const agent  = require('../lib/agent')

const config = agent.config

agent.start()

setInterval(function() {
	agent.emit('gpsData', {lat: 48, lng: -4})
}, 5000)

Note that your agent can access to its configuration defined in the global configuration file by using the config field of the agent object.

In this example, you create an agent which subscribes to the gpsData topic published by the agent created in the previous example.

Create a new file named gpsReader.js with the following content in the agents folder

const agent  = require('../lib/agent')

agent.register('gpsData', true, function(msg) {
	console.log('Receive msg', msg)
})

agent.start()

Note that the agent ask for the topic history by passing true as the second argument of the register method

To launch the agent created in the example 1, tape the following command from the framework root directory:

node agents/gpsProvider.js gpsProvider

The first argument of the node command is the javascript script code.

The second one is the name of the agent which MUST be unique in the whole system. This name is also used to identify the agent configuration defined in the global configuration file. So you can create several agents which use the same javascript code but with different configuration which is really usefull.

The framework provides severals tools to help you to manage and debug your system.

This tool allow you to display all message emitted on a topic

Usage:

node peek topic=[topicName] hist=[true | false]

where:

• topicName is the name of the topic to spy
• hist (optional) allow to ask for the history (last message stored by the master)

This tool allow you to emit a topic on the system

Usage:

node poke topic=[topicName] data=[data] file=[fileName]

where:

• topicName is the name of the topic to emit
• data (optional) is the payload of the topic
• file (optional) is the name (full path) of a JSON file containing the payload

data and file are exclusives

Note: the process returns after the topic was emitted

The launcher is a special tool which allow you to launch all the agents of your system included the master and the WEB server and to manage their state (running/stopped). This is also an agent which publishes and subscribes topics like other agents.

To do that, the launcher use the JSON configuration file config.json defined in the config folder. For each declared agent, the configuration specified the script (javascript code), the host (optional) where the agent has to run and the start mode (manual or automatic). See an exmple of configuration below.

Usage:

node launcher

The launcher emits a topic launcherStatus.HOST upon each agent state changes (HOST is the machine hostname).

The launcher also subscribes to 2 topics: launcherStartAgent and launcherStopAgent whose payload contains the name of the agent to start/stop.

The launcher stores the logs of each running agent in the directory defined in its configuration (logPath field), one file per agent. The name of the file is the agent name.

Note: Usually this tool is launch at the boot of the machine.

Example of file:

{
	"masterPort": 8090,
	"masterHost": "localhost",
	"launcher": {
		"logPath": "./logs",
		"agents": {
			"master": {"script": "master.js"},
			"gpsProvider": {"script": "agents/gpsProvider.js", "start": "manual"},
			"shapeAgent": {"script": "agents/shapeAgent.js", "start": "manual"},
			"server": {"script": "server.js", "start": "auto"},
		}
	},
	"server": {
		"port": 9000,
	 	"dbUrl" : " mongodb://localhost:27017/reviews "
	},
}

At the begining of the file, we found the port and the host of the master. Then comes the configuration of the differents agents included the launcher.

The graphical part of the system use a classical WEB client/server technology. All the code (front + back) are located in the hmi directory.

The main goal of the server is:

• handle the connection/deconnection of a user to the system (login)
• display the available application (webapp) of the connected user according to his rights
• provide a REST API to manage the users (creation/deletion/update)
• handle connection to the Mongodb database which stores the users and session informations

The WEB server (server.js) is based on the nodejs Express module and its middleware. It uses the EJS template engine to build the dynamic view (login, home, webapp skeleton).

The webapp (front end) uses my brainjs binding library based on a MVVM model (like angular, react or vue frameworks).

In this model, the view is a HTML fragment, the controler is an object of type ViewController which allow to modify the model and update automatically the DOM HTML of the view.

The front code uses a build system based on the task runner GULP nodejs tool. Mainly the tool is used to concatenate javascript or css files and to inject HTML fragment in javascript controller template field using gulp-inject directive.
