JSON

Learning Goals

• Understand the JSON format.
• Add the Jackson library.
• Use the Jackson library to read and write JSON files.

Introduction

CSV files are helpful, but they have one fundamental limitation, which is that each line in a CSV file represents a full object. This means, if we have a class that contains a data structure, like a List, or another object, like a Hospital has a Doctor, then this will be difficult to represent in a CSV.

Consider a Student class with an additional field for the student's classes:

public class Student {
  private String firstName;
  private String lastName;
  private char grade;
  private List<String> classes;

  // ...
}

Since we don't know how many classes a particular student has, we cannot come up with a fixed data format for the CSV file to properly capture all the information about each class. We need a file format that supports a hierarchical object structure.

JSON stands for JavaScript Object Notation and is a file format that offers more flexibility than CSV files and still allows us to map the data back to an object in Java. Consider the following to show the format of a JSON file:

[
  {
    "firstName": "Suzie",
    "lastName": "Bingham",
    "grade": "A",
    "classes": [
      "Computer Science"
    ]
  },
  {
    "firstName": "Dustin",
    "lastName": "Henderson",
    "grade": "B",
    "classes": [
      "Latin",
      "Physics",
      "Biology"
    ]
  },
  {
    "firstName": "Mike",
    "lastName": "Wheeler",
    "grade": "C",
    "classes": [
      "Chemistry",
      "Physics"]
  }
]

A JSON has the following format:

• A collection (array, list, ...) starts with an opening bracket [ followed by a list of elements, separated by a , and it ends with a closing bracket ].
• A single object starts with an opening curly brace { followed by a list of name/value pairs, separated by a , and it sends with a closing curly brace }.
• Each name/value pair consists of the name of the property in quotes followed by a colon :, followed by the actual value.
• The format we see in the JSON above is usually given the term "pretty printed". This format is the preferred format as it is the most readable compared to the data being printed on a single line.

Note: when we open a JSON file in IntelliJ, we can ask IntelliJ to format it so that it's not in a single line and is in the pretty format as shown above. With the file open, use the keyboard shortcut, "Cmd-Option-L", or go to the "Code" menu and select the "Reformat Code" option.

Since JSON is a more complex data format than a simple CSV file, we will be making use of an open-source JSON parser called "Jackson". It is a library with its own set of classes we can use to parse through a JSON file.

Adding the Jackson Library

We need to add the Jackson library to our project in IntelliJ. First, go to your project structure by right-clicking on your project root and selecting the "Open Module Settings" option:

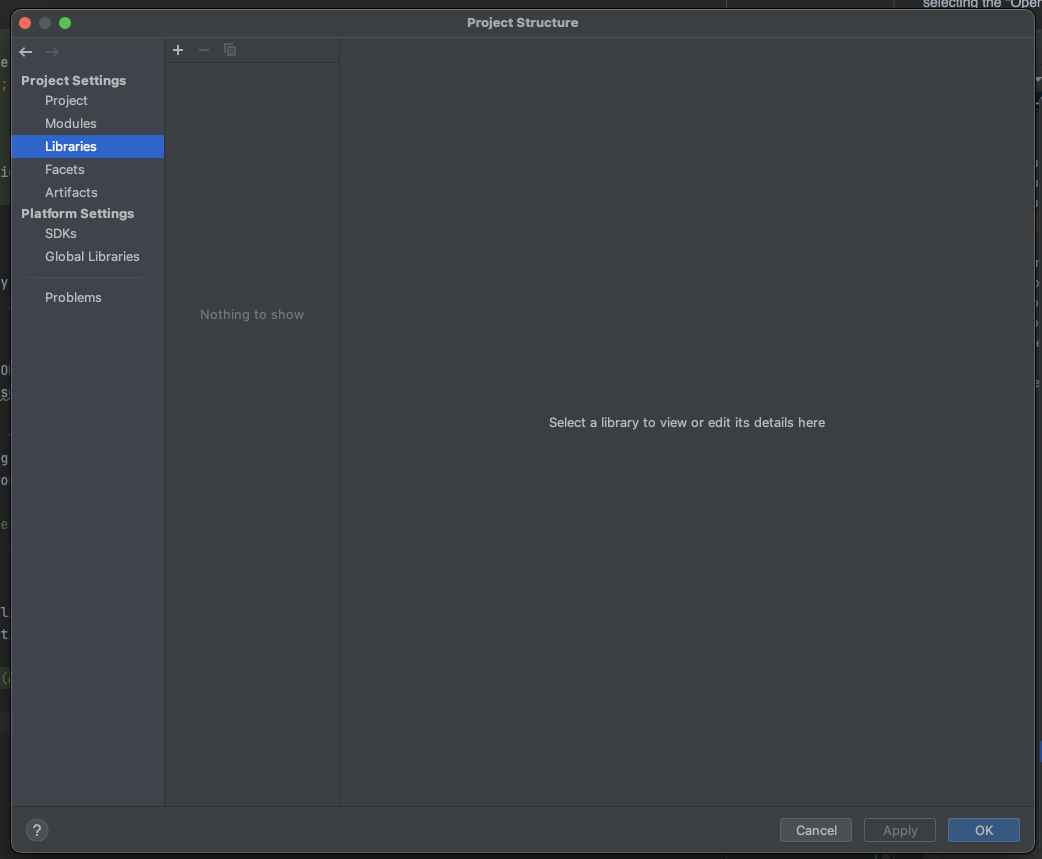

From the "Project Structure" screen select, the "Libraries" option under "Project Settings":

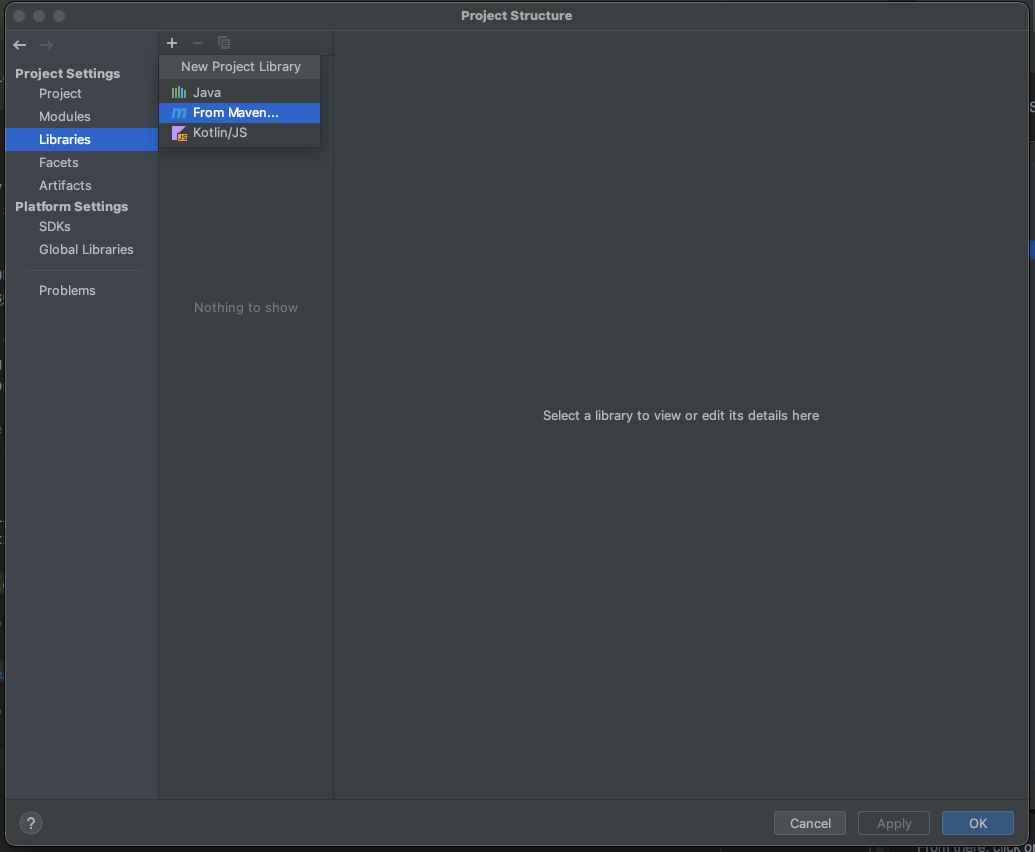

From there, click on the "+" sign to add a new library and choose to add a library from Maven:

Maven is a dependency management tool, which can be used to help manage complex dependencies on large projects.

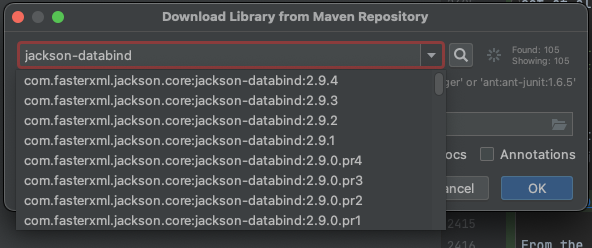

Enter the following in the search box: "jackson-databind", pull down the menu and select the latest available version:

Confirm your selection:

And finally confirm that you want to add this library to your project:

Working with JSON Files

Before we start working with the JSON file, let's modify a few things in our Student class:

import java.util.List;

public class Student {
    private String firstName;
    private String lastName;
    private char grade;
    private List<String> classes;

    // Add the list of classes to the constructor
    public Student(String firstName, String lastName, char grade, List<String> classes) {
        this.firstName = firstName;
        this.lastName = lastName;
        this.grade = grade;
        this.classes = classes;
    }

    public Student(String studentCSV) {
        String[] studentProperties = studentCSV.split(",");
        this.firstName = studentProperties[0];
        this.lastName = studentProperties[1];
        this.grade = studentProperties[2].charAt(0);
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public char getGrade() {
        return grade;
    }

    public void setGrade(char grade) {
        this.grade = grade;
    }

    // Add a getter method for the list of classes
    public List<String> getClasses() {
        return classes;
    }

    // Add a setter method for the list of classes
    public void setClasses(List<String> classes) {
        this.classes = classes;
    }

   // Modify the toString() method to include the list of classes
  @Override
  public String toString() {
    String studentString = String.format("%s %s has the letter grade %s",
            firstName,
            lastName,
            grade);
    studentString = studentString + " and is in the following classes: ";
    for (String c : classes) {
      studentString = studentString.concat(c).concat(" ");
    }
    return studentString;
  }

    public String formatAsCSV() {
        return String.format("%s,%s,%s", firstName, lastName, grade);
    }
}

Writing to a JSON

Now let's write a Student object to a JSON file:

import com.fasterxml.jackson.databind.ObjectMapper;

import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

public class FileIOMain {
    public static void main(String[] args) {
        List<String> classes = new ArrayList<String>(Arrays.asList("Computer Science"));
        Student suzie = new Student("Suzie", "Bingham", 'A', classes);
        File file = new File("student.json");
        ObjectMapper objectMapper = new ObjectMapper();
        try {
            objectMapper.writerWithDefaultPrettyPrinter().writeValue(file, suzie);
        } catch(IOException ioException) {
            ioException.printStackTrace();
        }
    }
}

In the above code, we are using an ObjectMapper object. This class is part of the Jackson library we just added to our project! The ObjectMapper class provides functionality for reading and writing JSONs. The first method we see that we call is the writerWithDefaultPrettyPrinter(). When we write to a JSON file, it will sometimes be formatted all on one line; which is not always the easiest to read. By using the writerWithDefaultPrettyPrinter() method, we can tell the objectMapper that we want to write the JSON file using the format we saw above where everything was on new lines and indented. We can the call the writeValue() method. The writeValue() method takes in the file we want to write to along with the object that should be converted to a JSON file. As we have seen before with file IO, the writeValue() could potentially throw an IOException, so it is best to wrap the statement in a try-catch.

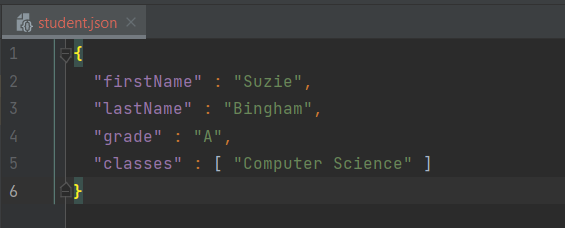

If we run the code above, it will create a student.json file with the following content:

Let's see if we can write out more students to our student.json file to make it more interesting!

import com.fasterxml.jackson.databind.ObjectMapper;

import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

public class FileIOMain {
    public static void main(String[] args) {
        Student suzie = new Student("Suzie",
                "Bingham",
                'A',
                new ArrayList<String>(Arrays.asList("Computer Science")));
        Student dustin = new Student("Dustin",
                "Henderson",
                'B',
                new ArrayList<>(Arrays.asList("Latin", "Physics", "Biology")));

        Student[] students = {suzie, dustin};

        File file = new File("student.json");
        ObjectMapper objectMapper = new ObjectMapper();
        try {
            objectMapper.writerWithDefaultPrettyPrinter().writeValue(file, students);
        } catch (IOException ioException) {
            ioException.printStackTrace();
        }
    }
}

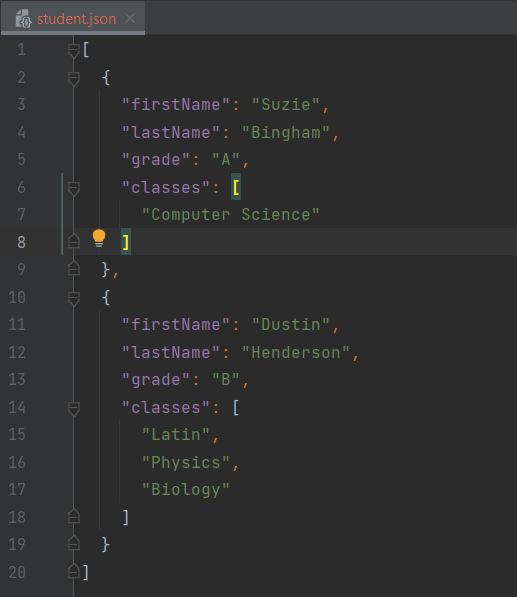

Notice in the above code, we have two students now that we want to write to a JSON. We'll add them to a Student[] and pass that to the writeValue() method. Check out our new student.json file:

Reading from a JSON

Now that we have written out to a JSON file, let's see if we can read a JSON back in.

When we are reading from a JSON file, we'll want to use the Jackson annotations to tell the parser what constructor to use and what the properties are called in our JSON file. Consider the following modifications to the Student class:

import com.fasterxml.jackson.annotation.JsonCreator;
import com.fasterxml.jackson.annotation.JsonProperty;

import java.util.List;

public class Student {
  private String firstName;
  private String lastName;
  private char grade;
  private List<String> classes;

  @JsonCreator
  public Student(@JsonProperty("firstName") String firstName,
                 @JsonProperty("lastName") String lastName,
                 @JsonProperty("grade") char grade,
                 @JsonProperty("classes") List<String> classes) {
    this.firstName = firstName;
    this.lastName = lastName;
    this.grade = grade;
    this.classes = classes;
  }

  //...
}

In the code above, we have added a couple of annotations: @JsonCreater and @JsonProperty. The @JsonCreator tells Jackson that we'd like to use this constructor when mapping the JSON data back to our Student object. This annotation is placed directly before the constructor definition. As for each argument, we'll add the @JsonProperty annotation before each parameter that the constructor takes in. We'll also specify what the property is in the JSON file. For example, the first name of the student will appear as "firstName" in the JSON file, so we'll specify that property name in the parameter list as appropriate.

Adding these annotations are necessary if we do not specify a default constructor. By default, Jackson will try to use the default (empty) constructor along with the accessor and mutator methods. If we didn't want to add the above annotations, we could have also just added a constructor like this:

public Student() {}

Now that we have either added a constructor that does nothing or the annotations we specified, we can use the ObjectMapper to read in the JSON and map it to our Student class to create Student objects.

import com.fasterxml.jackson.databind.ObjectMapper;

import java.io.File;
import java.io.IOException;

public class FileIOMain {
    public static void main(String[] args) {
        File file = new File("student.json");
        ObjectMapper objectMapper = new ObjectMapper();
        try {
            Student[] students = objectMapper.readValue(file, Student[].class);
            for (Student student : students) {
                System.out.println(student);
            }
        } catch (IOException ioException) {
            ioException.printStackTrace();
        }
    }
}

This time, we are using our objectMapper to call the readValue() method. This will take in the JSON file we want to read from and the class we want to map the JSON objects back to. Since our current student.json file consists of two students, we'll read in a Student[]. Note that if we know we only have one Student object in the JSON, we could just specify the Student.class instead. Once we have read in the Student objects, we'll print them out to the console.

The following is the expected output of the code above:

Suzie Bingham has the letter grade A and is in the following classes: Computer Science
Dustin Henderson has the letter grade B and is in the following classes: Latin Physics Biology

JSON has several advantages over other object notations, including CSV:

• It's very readable because every property is formatted as a name/value pair, so as long as properties are well named, the file will be easy to read.
• It's a lightweight, compact format - there aren't many characters that aren't part of the object structure itself.
• It's a very portable format - the vast majority of programming languages and platforms have libraries that can handle JSON objects.
• It can represent object structures of arbitrary complexity and depth.

Resources

• Jackson-Databind ObjectMapper
