Linq2d

Linq2d is a C# library designed to provide a convenient way to express various arithmetic filters over 2d arrays with a decent performance. It relies upon the Linq concepts for writing the array transforms and dynamic code generation for performing the actual computation. I have created it mostly for fun, out of joy of being able to work with the Lambdas, Expressions, MSIL, and Intel Intrinsics. C# is an awesome language, .Net Core is an awesome platform, and I wanted to probe the boundaries of what's possible with it.

Video

You can watch the presentation of the Linq2d I've made for https://2020.DotFest.ru:

Russian English

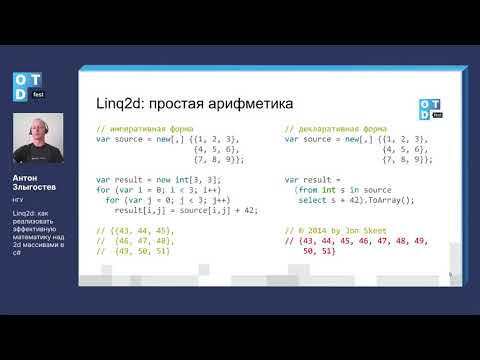

Linq2d presentation in Russian Linq2d presentation in English

Intro

Let's do a simple array transform:

var sample = new[,] { { 1, 2 }, { 3, 4 } };
q = from s in sample select s + 1;
Assert.Equal(new[,] { { 2, 3 }, { 4, 5 } }, q.ToArray());

So far, the query over a 2d array looks like a standard query over an IEnumerable<int> would - we have a range variable s that takes the values from the input, and an expression that produces the elements of the output. The .ToArray() instance method is used to get the query results in a form of an int[,].

Consider a bit more contrived example:

var left = new[,] { { 1, 2 }, { 3, 4 } };
var right = new[,] { { 4, 3 }, { 2, 1 } };
var q = from l in left
        from r in right
        select l + r;
Assert.Equal(new[,] { { 5, 5 }, { 5, 5 } }, q.ToArray());

Now we're adding the contents of two arrays to each other. Unlike the traditional Linq, Linq2d does not require any kind of joins - it aligns the inputs to each other, and requires them to be of the same size. Size difference would be reported as an ArgumentException at the run time.

Relative Access

Having an access only to the "current" elements of the arrays being processed would not be expressive enough. Linq2d range variables can do more than that. Let's compute a simple filter known as "C4" - arithmetic mean of the array element neighbours:

var sample = new[,] { { 4, 4, 4}, { 4, 4, 4 } , { 4, 4, 4 }};
var q = from s in sample select (s[-1, 0] + s[1, 0] + s[0, -1] + s[0, 1]) / 4; // ouch!

Have we tried to write such a code in a traditional imperative way, it would immediately produce an IndexOutOfBounds exception. That's what Linq2d would do as well. In order to make this query work, we need to specify a strategy for handling the out-of-bounds access attempts. One such strategy is "replace the missing values with a constant", and we can specify it for accessing the sample array via the .With() extension method that accepts the substitution value:

var sample = new[,] { { 4, 4, 4 }, { 4, 4, 4 }, { 4, 4, 4 } };
var q = from s in sample.With(initValue: 0)
        select (s[-1, 0] + s[1, 0] + s[0, -1] + s[0, 1]) / 4;
Assert.Equal(new[,] { { 2, 3, 2 }, { 3, 4, 3 }, { 2, 3, 2 } }, q.ToArray());

This code does compile and run fine, and automatically takes care of the corner and border cell values calculation. However, for our particular case this strategy does not do much good - a "dark halo" appears at the borders. The reason for it is the boundary and the corner cells get only three or two neigbours to add before dividing by 4. That's why their values tend to be lower than the values of the mainland cells. Linq2d does offer a better strategy for handling such cases. It is named "nearest neighbour". This strategy "moves"" the out-of-bound cell requests to the closest cells that are within the array boundaries: Nearest neighbour

This strategy is activated via the same .With() extension method with the strategy passed as an argument:

var sample = new[,] { { 4, 4, 4 }, { 4, 4, 4 }, { 4, 4, 4 } };
var q = from s in sample.With(OutOfBoundsStrategy.NearestNeighbour)
        select (s[-1, 0] + s[1, 0] + s[0, -1] + s[0, 1]) / 4;
Assert.Equal(sample, q.ToArray());

This time the number of cells being added for every target cell is the same, and the "general brightness" is preserved. In both cases above, Linq2d would verify the size of the input array to fit the provided filter kernel at least once. So, in the C4 case, an attempt to calculate the filter over an array smaller than (3 x 3) will fail.

Multiple Results

Sometimes the same source data is used to create multiple resulting arrays:

var left  = new [,] { { 1, 2, 3 }, { 4, 5, 6 }, { 7, 8, 9 }};
var right = new [,] { { 9, 8, 7 }, { 6, 5, 4 }, { 3, 2, 1 }};

var sum = from l in left
          from r in right
          select l + r;

var diff = from l in left
           from r in right
           select l - r;

Assert.Equal(new [,] { { 10, 10, 10 }, { 10, 10, 10 }, { 10, 10, 10 }}, sum.ToArray());
Assert.Equal(new [,] { { -8, -6, -4 }, { -2,  0,  2 }, {  4,  6,  8 }}, diff.ToArray());

Iterating through the source array just once might gain a better performance than repetitive iterations. This can be done by selecting a ValueTuple in the linq2d expression:

var left = new [,] { { 1, 2, 3 }, { 4, 5, 6 }, { 7, 8, 9 }};
var right = new [,] { { 9, 8, 7 }, { 6, 5, 4 }, { 3, 2, 1 }};

var both = from l in left
           from r in right
           select ValueTuple.Create(l + r, l - r);
           // selecting (l + r, l - r) would be even better, but C# up to 7.3
           // doesn't support the tuple literals in Expression Trees. See also CS8143 and
           // https://github.com/dotnet/roslyn/issues/12897.

var (s, d) = both.ToArrays(); // the number and types of the arrays do match the
                              // number and types of the select clause members

Assert.Equal(new [,] { { 10, 10, 10 }, { 10, 10, 10 }, { 10, 10, 10 }}, s);
Assert.Equal(new [,] { { -8, -6, -4 }, { -2, 0, 2 }, { 4, 6, 8 }}, d);

Recurrent Calculations

Sometimes it might be useful to access the already calculated parts of the result array. For example, we might want to compute the "sum of all the cell values in the column from the current one (inclusive) to the top":

var sample = new[,] { {1, 2, 3}, {4, 5, 6}, {7, 8, 9} };
var q = from s in sample
        from r in Result.InitWith(0)
        select s + r[-1, 0];
Assert.Equal(new[,] { {1, 2, 3}, {5, 7, 9}, {12, 15, 18} }, q.ToArray();

Result range variable is similar to the input reference, but it is a subject to a few extra limitations:

  • Only relative access is allowed. It is prohibited to get the "current" result value, since it hasn't been computed yet
  • It is required to provide the value for the result access outside of the result array, in an argument to the static Result.InitWith() method.

Multiple results selection can be combined with the recurrent calculation. Here is an expression that produces the integrals of both data and data squared:

byte[,] grayImage = ImageHelpers.IO.LoadGrayScale("test.bmp");
var integral = from g in grayImage
               from ri in Result.InitWith(0)
               from rq in Result.InitWith(0)
               select ValueTuple.Create(
                 ri[-1, 0] + ri[0, -1] - ri[-1, -1] + g,
                 rq[-1, 0] + rq[0, -1] - rq[-1, -1] + g * g);

The count of Result references must be less than or equal to the count of the select clause members. The first Result reference refers to the member #1, the second - to #2, and so on. I.e. if the result expression does not need the first recurrent result, then it could be ignored:

byte[,] grayImage = ImageHelpers.IO.LoadGrayScale("test.bmp");
var secondRecurrent = from g in grayImage
               from _ in Result.InitWith(0)
               from r in Result.InitWith(0)
               select ValueTuple.Create(
                 g * 2,
                 g + r[-1, 0] + r[0, -1] - r[-1, -1]);

The same result can be achieved by swapping the order of the output parameters; then the dummy range variable is not needed:

byte[,] grayImage = ImageHelpers.IO.LoadGrayScale("test.bmp");
var secondRecurrent = from g in grayImage
               from r in Result.InitWith(0)
               select ValueTuple.Create(
                 g + r[-1, 0] + r[0, -1] - r[-1, -1],
                 g * 2);

Performance

Performance is important in the numeric computations, especially when dealing with substantially large data sets. Linq2d attempts to alleviate the abstraction penalties incurred with the .Net framework:

  • Usual multidimensional array acesses (a[1, 2] ) are always subject to the range checks; JIT doesn't optimize those checks away even for the straightforward iteration cycles.
  • Calling a delegate with a small body in a tight loop is a terrible idea, performance-wise; the call overhead is ~10 times more than an integer register-memory operation (Intel x64 is assumed) Therefore Linq2d does not attempt to execute the operation specified in the select statement as Linq2objects does; it compiles the whole iteration block into a dynamic delegate and then applies it to the input data. This delegate is exposed as the Transform property of the query object. If the same filter is going to be applied multiple times over varying source data, one can reuse the delegate and avoid the overhead of dynamic compilation. The following sample features storing the C4 filter for the future reuse:
public static readonly Func<int[,], int[,]>  C4 = BuildC4();
(from s in sample.With(OutOfBoundsStrategy.NearestNeighbour)
        select (s[-1, 0] + s[1, 0] + s[0, -1] + s[0, 1]) / 4);

Here are some benchmark results measured on my laptop:

BenchmarkDotNet=v0.12.1, OS=Windows 10.0.18363.836 (1909/November2018Update/19H2)
Intel Core i7-6600U CPU 2.60GHz (Skylake), 1 CPU, 4 logical and 2 physical cores
.NET Core SDK=3.1.300
  [Host]     : .NET Core 3.1.4 (CoreCLR 4.700.20.20201, CoreFX 4.700.20.22101), X64 RyuJIT
  DefaultJob : .NET Core 3.1.4 (CoreCLR 4.700.20.20201, CoreFX 4.700.20.22101), X64 RyuJIT
Method FileName Mean Error StdDev Ratio RatioSD
NaturalC4 p00743.bmp 360.21 ms 7.840 ms 22.241 ms 2.10 0.17
UnsafeC4 p00743.bmp 171.59 ms 3.401 ms 7.023 ms 1.00 0.00
LinqC4 p00743.bmp 117.92 ms 2.344 ms 5.045 ms 0.69 0.04
LinqC4Cached p00743.bmp 102.12 ms 1.685 ms 2.768 ms 0.60 0.03
NaturalC4 p02652.bmp 230.55 ms 4.586 ms 4.504 ms 2.08 0.06
UnsafeC4 p02652.bmp 111.09 ms 2.116 ms 1.979 ms 1.00 0.00
LinqC4 p02652.bmp 91.01 ms 1.812 ms 4.547 ms 0.81 0.05
LinqC4Cached p02652.bmp 76.23 ms 1.495 ms 2.237 ms 0.69 0.03

The C4 filter has been executed over the grayscale bitmaps, one is 5 184 * 6 433 px, the other is 5 184 * 4 157 px. The bitmaps are converted into the byte[,] arrays; the filter outputs the int[,] array - remember that all arithmetics in C# is either int or long; there are no + or / operators defined for bytes. The methods compared are as follows:

  • NaturalC4: a naive iteration with two nested cycles, fair access to the data array with the indexing operatior [,]. Illustrates the penalties for the range checks inserted by .Net to the idiomatic code, likely to be written by a novice developer.
  • UnsafeC4: baseline method for measuring the performance; uses the fixed pointers to the array data for both input and result to avoid the range checks. Might be written by a seasoned developer who is familiar with the unsafe features of C#.
  • LinqC4: a fair Linq2d query execution. Incurs the penalties for the dynamic compilation upon every call
  • LinqC4Cached: prepares the Transform delegate built by Linq2d in advance, and reuses it on every iteration. Illustrates the significance of the dynamic compilation penalties. The bottom line is that for this type of filter direct linq2d wins 20% to 30% of the execution time against the "manually optimized" code; caching wins ~10% more.
