So, this is a tough one, but I managed to narrow down the problem and make a simple repro.

Take this style:

<Style TargetType="bgKitControls:MaterialContentView" x:Key="TestStyle">
    <Setter Property="IsClickable" Value="True" />
    <Setter Property="Background">
        <bgKitControls:Background Color="DodgerBlue" IsRippleEnabled="True" RippleColor="Magenta" />
    </Setter>

    <Style.Triggers>
        <Trigger TargetType="bgKitControls:MaterialContentView" Property="IsEnabled" Value="False">
            <Setter Property="Background" Value="{bgKitMarkup:BgProvider Color=Gray}" />
        </Trigger>
    </Style.Triggers>
</Style>

Apply it to this view:

<bgKitControls:MaterialContentView
    Style="{StaticResource TestStyle}"
    WidthRequest="100" HeightRequest="40"
    IsEnabled="{Binding ShouldBeEnabled}">
</bgKitControls:MaterialContentView>

Now, the ripple is not working, when IsEnabled=true.

Remove the Trigger in the Style, or remove IsEnabled on the view (without touching the Style), and the ripple is showing up again.

Also, IsEnabled must be a Binding. It works if you pass "True" directly.

But... if the property that was bound in the Binding (ShouldBeEnabled in my example) was always true from the beginning, it works. However, if it goes from false to true at least once, there the ripple is broken.

I have this in my (ReactiveUI) ViewModel to demonstrate this non-deterministic effect:

public class Vm : ReactiveObject {
    [Reactive]
    public bool ShouldBeEnabled { get; set; } = false;

    public Vm(long roomId) {
        Device.StartTimer(TimeSpan.FromSeconds(2), () => {
            ShouldBeEnabled = true;
            return false;
        });
    }
}

If you replace false by true, no problem, it's working as intended.

BackgroundKit should let developers provide a custom shape to their views.

TODO Shapes

BackgroundKit will support the following shapes:
Rectangle (In PR)
Round Rectangle (In PR)
Arc (In PR)
Diagonal - pending
CornerClip - pending
Triangle - pending
Custom (Developer will be able to register custom providers) - pending

API Changes

public interface IBackgroundShape
{
        bool NeedsBorderInset { get; }
        VisualElement Parent { get; set; }
        IMaterialVisualElement Background { get; }

        event EventHandler<EventArgs> ShapeInvalidateRequested;
}

public class BaseShape : BindableObject, IBackgroundShape
{
        public VisualElement Parent { get; set; }

        public IMaterialVisualElement Background =>
            Parent is IBackgroundElement backgroundElement ? backgroundElement.Background : null;

        public bool NeedsBorderInset =>
            Background != null && Background.BorderStyle == BorderStyle.Outer && Background.BorderWidth > 0;

        public event EventHandler<EventArgs> ShapeInvalidateRequested;

        public virtual void InvalidateShape()
        {
            ShapeInvalidateRequested?.Invoke(this, EventArgs.Empty);
        }
}

Every shape will derive from BaseShape. e.g. Arc:

public class Arc : BaseShape
{
        public static readonly BindableProperty PositionProperty = BindableProperty.Create();

        public ArcPosition Position
        {
            get => (ArcPosition)GetValue(PositionProperty);
            set => SetValue(PositionProperty, value);
        }

        public static readonly BindableProperty IsCropInsideProperty = BindableProperty.Create()

        public bool IsCropInside
        {
            get => (bool)GetValue(IsCropInsideProperty);
            set => SetValue(IsCropInsideProperty, value);
        }

        public static readonly BindableProperty ArcHeightProperty = BindableProperty.Create();

        public double ArcHeight
        {
            get => (double)GetValue(ArcHeightProperty);
            set => SetValue(ArcHeightProperty, value);
        }
}

Every shape will have a Platform Path Provider in order to generate a path for the view. For example, for iOS:

public interface IPathProvider : IDisposable
{
        CGPath Path { get; }
        bool IsPathDirty { get; }
        bool IsBorderPathDirty { get; }
        bool IsBorderSupported { get; }
        bool CanHandledByOutline { get; }

        void Invalidate();
        void SetShape(IBackgroundShape shape);

        CGPath CreatePath(CGRect bounds);
        CGPath CreateBorderedPath(CGRect bounds);
}

Every Path Provider will derive from BasePathProvider that implements the IPathProvider and override the following 2 methods for getting a path with or without border. For example, RectPathProvider on iOS:

public class RectPathProvider : BasePathProvider<Rect>
{
        public override bool IsBorderSupported => true;

        public override void CreatePath(Rect shape, CGRect bounds)
        {
            Path = UIBezierPath.FromRect(bounds).CGPath;
        }

        public override void CreateBorderedPath(Rect shape, CGRect bounds, double strokeWidth)
        {
            BorderPath = UIBezierPath.FromRect(bounds.Inset((float)strokeWidth, (float)strokeWidth)).CGPath;
        }
}

Same goes for Android.

hi @ChasakisD, i found error with your BackgroundKit.
Type BgProvider not found in xmlns http://xamarin.com/schemas/2014/forms/background
in xamarin previewer just fine, but when I build the project an error occurs
I'm using visual studio for mac 8.3.7
please the solution

hello, XamarinBackgroundKit.Android.BackgroundKit.Init(); is not found in my MainActivity

/Users/agusibrahim/Projects/testbgkit/testbgkit.Android/MainActivity.cs(13,13): Error CS0234: The type or namespace name 'Android' does not exist in the namespace 'XamarinBackgroundKit' (are you missing an assembly reference?) (CS0234) (testbgkit.Android)

please refer screenshot

already added to nuget

please help

MaterialBackgroundManager is not listening to background changes, so when you set Material Views' background to another Background instance, it has no effect

On android, if color property is not set, the gradientbrush is not working.

Hello,

I'm trying to wrap inputs in MaterialContentViews to given them elevation and rounded corners, I have an Entry and a Picker.

In Xamarin Forms Android, entries and pickers have an underline that cannot be removed via shared code.
Actually, I managed to remove it with Xamarin.Forms.BackgroundKit on entries, but not on the picker.

I tried various solutions without success, and here's the last iteration of it (clutter removed, but there's more code that should not be relevant to our problem):

<bgKitControls:MaterialContentView
    Background="{bgKitMarkup:BgProvider Elevation=4, Color=White}"
    IsCornerRadiusHalfHeight="True">

    <Picker bgKitEffects:BackgroundEffect.Background="{bgKitMarkup:BgProvider Color=White}" />
</bgKitControls:MaterialContentView>

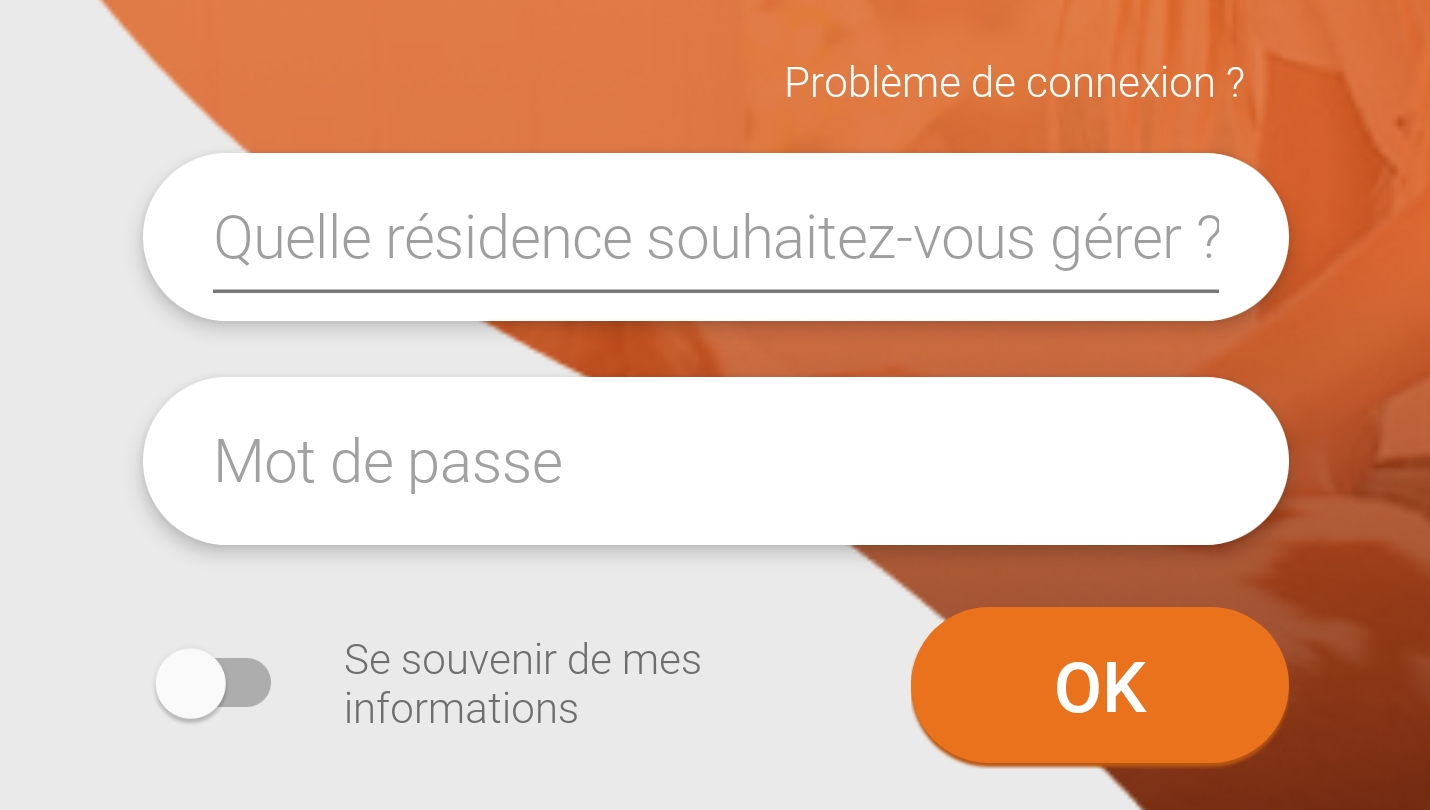

Picker is the first control, Entry is the second:

(yeah the button has a terrible shadow, that's because I still use the one provided by Xamarin.Forms for now :p)

While the exact same technique works on entries, it does not here. Instead of, or accompanying, Color=White on the Picker, I also tried adding BorderWidth=0 or BorderColor=Transparent.

I'm also still using MaterialContentView because of IsCornerRadiusHalfHeight and because I can apply a padding on it, which I can't on the Picker. I also seem to have less rendering problems (elevation shadow not rounded while the background, and more, but anyway).

Another test, without MaterialContentView, terrible rendering:

(This one has {bgKitMarkup:BgProvider Color=White, CornerRadius=24, Elevation=4, BorderWidth=5, BorderColor=White}) and some more (unrelated) Xamarin.Forms properties.

But maybe there's a better solution to my problem?

I'll also try on iOS tomorrow to see how that works on that platform.

A last word. Thank you so much for your work ; this must have been hard. I use Xamarin.Forms occasionally for years and this is probably the best library I've discovered for everyday work. I mean, really: if you've got a PayPal or something, that'd be my pleasure to make a little donation.

When border width is set to zero, the border should not be drawn. This issue is only happening on Android.

When corner radius is uniform(the same on each corner) the clipping is done by the ViewOutlineProvider.

When the corner radius is not uniform, ViewOutlineProvider only draws the shadow and the clipping is done by the ClipPathManager.

Right now, the manager clips the child view in any case. It should be more effective, if the manager clips the child views only when the corner radius is not uniform.

Are using BackgroundKit in my app which is working great but it is crashing when using Android Lollipop phones. Getting error about getForeground.

Have debugged it and see that this line is crashing, on view.Foreground:

public static ShapeDrawable GetRippleMaskDrawable(this AView view)
{
    if (!(view.Foreground is RippleDrawable rippleDrawable)) return null;

    return rippleDrawable.GetDrawable(0) as ShapeDrawable;
}

If I fix it and return null I get a Scroll error which I don't really understand:
Java.Lang.ClassNotFoundException: 'mono.android.view.View_OnScrollChangeListenerImplementor'

Should Backgroundkit work on Android Lollipop?

Hi

I have added the nugget and did the instanciation is the ios and android classes.

I use the xmlns:background="http://xamarin.com/schemas/2014/forms/background"

When I add the background code I have the issue that:
Error Position 47:14. Type background:Background not found in xmlns http://xamarin.com/schemas/2014/forms/background

My code is this:

Can you help please?

</CarouselView.ItemTemplate>
< background:BackgroundEffect.Background >
<background:Background
CornerRadius="5"
Elevation="4"
IsRippleEnabled="True"
RippleColor="White"
Color="Red" />
</background:BackgroundEffect.Background>

Hi @ChasakisD,

I'm using MaterialContentView inside CollectionView (XF 4.4) and I'm getting a random ObjectDisposedExpection while scrolling through the list.

Exception points to this method (MaterialShapeManager, line 122); it seems that "_clipPath" is sometimes disposed:

    private void InitializeClipPath(int width, int height)
    {
        if (width <= 0 || height <= 0) return;

        var canvasBounds = new RectF(0, 0, width, height);
        canvasBounds.Inset(-1, -1);

        /* Always prefer border path. If there is no need, the provider will return the default one */
        var clipPath = PathProvider.CreateBorderedPath(width, height);

        _clipPath.Reset();
        _clipPath.Set(clipPath);

        _maskPath.Reset();
        _maskPath.AddRect(canvasBounds, Path.Direction.Cw);
        _maskPath.InvokeOp(_clipPath, Path.Op.Difference);
    }

StackTrace:

at Java.Interop.JniPeerMembers.AssertSelf (Java.Interop.IJavaPeerable self) [0x00029] in :0
at Java.Interop.JniPeerMembers+JniInstanceMethods.InvokeVirtualVoidMethod (System.String encodedMember, Java.Interop.IJavaPeerable self, Java.Interop.JniArgumentValue* parameters) [0x00000] in :0
at Android.Graphics.Path.Reset () [0x0000a] in :0
at XamarinBackgroundKit.Android.Renderers.MaterialShapeManager.InitializeClipPath (System.Int32 width, System.Int32 height) [0x0003b] in /Users/chasakisd/Desktop/GitRepos/Xamarin.Forms.BackgroundKit-new/src/XamarinBackgroundKit.Android/Renderers/MaterialShapeManager.cs:122
at XamarinBackgroundKit.Android.Renderers.MaterialShapeManager.Draw (Android.Views.View view, Android.Graphics.Canvas canvas, System.Action dispatchDraw) [0x00009] in /Users/chasakisd/Desktop/GitRepos/Xamarin.Forms.BackgroundKit-new/src/XamarinBackgroundKit.Android/Renderers/MaterialShapeManager.cs:99
at XamarinBackgroundKit.Android.Renderers.MaterialBackgroundManager.Draw (Android.Views.View view, Android.Graphics.Canvas canvas, System.Action dispatchDraw) [0x00000] in /Users/chasakisd/Desktop/GitRepos/Xamarin.Forms.BackgroundKit-new/src/XamarinBackgroundKit.Android/Renderers/MaterialBackgroundManager.cs:402
at XamarinBackgroundKit.Android.Renderers.MaterialContentViewRenderer.DispatchDraw (Android.Graphics.Canvas canvas) [0x00014] in /Users/chasakisd/Desktop/GitRepos/Xamarin.Forms.BackgroundKit-new/src/XamarinBackgroundKit.Android/Renderers/MaterialContentViewRenderer.cs:53
at Android.Views.View.n_DispatchDraw_Landroid_graphics_Canvas_ (System.IntPtr jnienv, System.IntPtr native__this, System.IntPtr native_canvas) [0x00011] in :0
at (wrapper dynamic-method) Android.Runtime.DynamicMethodNameCounter.77(intptr,intptr,intptr)

Background Kit should handle border styles such as: Inner, Outer, Both.

{System.NullReferenceException: Object reference not set to an instance of an object at XamarinBackgroundKit.iOS.Renderers.MaterialContentViewRenderer.TouchesEnded (Foundation.NSSet touches, UIKit.UIEvent evt) [0x00026] in /Users/chasakisd/Desktop/GitRepos/Xamarin.Forms.BackgroundKit-new/src/XamarinBackgroundKit.iOS/Renderers/MaterialContentViewRenderer.cs:93 at (wrapper managed-to-native) UIKit.UIApplication.UIApplicationMain(int,string[],intptr,intptr) at UIKit.UIApplication.Main (System.String[] args, System.IntPtr principal, System.IntPtr delegate) [0x00005] in /Library/Frameworks/Xamarin.iOS.framework/Versions/13.10.0.17/src/Xamarin.iOS/UIKit/UIApplication.cs:86 at UIKit.UIApplication.Main (System.String[] args, System.String principalClassName, System.String delegateClassName) [0x0000e] in /Library/Frameworks/Xamarin.iOS.framework/Versions/13.10.0.17/src/Xamarin.iOS/UIKit/UIApplication.cs:65 at Vitreo.App.iOS.Application.Main (System.String[] args) [0x00001] in C:\projects\Vitreo.App\Vitreo.App.iOS\Main.cs:17 }

In many design suggestion the shadow is much more subtle or its just not black. I gave your code a glimpse and saw that this should be pretty easy to add.

For iOS both GradientStrokeLayer and MDCCard support setting a shadowcolor.

for Android API 28 MaterialCardView supports .SetOutlineAmbientShadowColor and .SetOutlineSpotShadowColor

I would love to see this feature!

Thanks!

A core feature for background kit is dashed border.

Both Android and iOS support dashed border.

Android implementation on dev branch

Hi again,

I was trying to use a transparent background color, but it seems the alpha channel is lost on Android (I haven't tested on iOS yet).

But I've found that it's working flawlessly with gradients.

This is not working :

{bgKitMarkup:BgProvider Color=Transparent}

While this works:

{bgKitMarkup:BgProvider GradientBrush={bgKitMarkup:LinearGradient Start=Transparent, End=Transparent}}

On iOS, background effect is not fully working on BoxView. On Android works pretty well.

Setting IsRippleEnabled to true with Color=Transparent is not working on Android. RippleDrawable on BackgroundManager should use different mask.

ava.lang.NoSuchMethodError: no non-static method "Lcom/xamarin/forms/platform/android/FormsViewGroup;.getForeground()Landroid/graphics/drawable/Drawable;"
07-17 21:18:31.104 I/mono-stdout( 7091): at mono.java.lang.RunnableImplementor.n_run(Native Method)
07-17 21:18:31.104 I/mono-stdout( 7091): at mono.java.lang.RunnableImplementor.run(RunnableImplementor.java:30)
07-17 21:18:31.104 I/mono-stdout( 7091): at android.os.Handler.handleCallback(Handler.java:739)
07-17 21:18:31.104 I/mono-stdout( 7091): at android.os.Handler.dispatchMessage(Handler.java:95)
07-17 21:18:31.104 I/mono-stdout( 7091): at android.os.Looper.loop(Looper.java:135)
07-17 21:18:31.104 I/mono-stdout( 7091): at android.app.ActivityThread.main(ActivityThread.java:5254)
07-17 21:18:31.104 I/mono-stdout( 7091): at java.lang.reflect.Method.invoke(Native Method)
07-17 21:18:31.104 I/mono-stdout( 7091): at java.lang.reflect.Method.invoke(Method.java:372)
07-17 21:18:31.104 I/mono-stdout( 7091): at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:903)
07-17 21:18:31.104 I/mono-stdout( 7091): at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:698)

Gradients on both platforms should be drawn through some king of managers.

Specifying a manager for a specific gradientbrush will allow us to easily manage linear, radial gradients etc. This way will also allow users to extend existing managers.

hello,

i think this is what you need in :

            CATransaction.Begin();
            CATransaction.DisableActions = true;
            // update CALayer here
            CATransaction.Commit();

please note, that this shouldn't be optional, since the animation only applies to the background layer, the container (along with elevation shadow etc) is updated instantly, which leads to really ugly half animated updates. (when scrolling through a listview for example)

Material Components Card has ripple when Interactable = true. Further test is required when having subviews with background. Subviews should process touch to the parent in order to correctly show the ripple.

For now, do not change the whole background instance. Just change its color.

Tested that (in my real app I'm changing Elevation though, Color is just an example), and that works, but the problem is, is that I use a Style. The Background is therefore shared between many views in the same page (eg. multiple buttons or form controls). If I change one, I change them all.

It looks like this:

<Style x:Key="BaseControlMaterialView" TargetType="bgKitControls:MaterialContentView">
    <Setter Property="IsCornerRadiusHalfHeight" Value="True" />
    <Setter Property="Background" Value="{bgKitMarkup:BgProvider Color={StaticResource BrandWhite}, Elevation={StaticResource BaseElevation}}" />

    <Style.Triggers>
        <Trigger TargetType="bgKitControls:MaterialContentView" Property="IsEnabled" Value="False">
            <Setter Property="Background" Value="{bgKitMarkup:BgProvider Color={StaticResource BrandWhite}, Elevation=0}" />
        </Trigger>
    </Style.Triggers>
</Style>

Here, a view that gets IsEnabled="False" will take another background and the other views aren't touched, and I don't have to manage it by hand.

Edit : doesn't work better on iOS either!

Thanks for your help!

Originally posted by @toverux in #63 (comment)

Hello,

The library exposes a few command properties, I'll take the example of MaterialContentView.ClickedCommand.

This one holds a Xamarin.Forms.Command instance while typically it is recommended to use System.Windows.Input.ICommand instead. Even Xamarin.Forms uses it, see Button.Command for example.

I personally use ReactiveUI's ReactiveCommand to fulfill my needs. This implementation implements ICommand but does not inherit from Xamarin.Forms.Command, leading to this`kind of binding errors:

Binding: ReactiveUI.ReactiveCommand`2[Aterno.Binding.DisplayableRoom,System.Reactive.Unit] can not be converted to type 'Xamarin.Forms.Command'

Now I use a value converter to convert my commands on the fly:

public class ReactiveToXamarinCommandConverter : IValueConverter {
    public object Convert(object value, Type targetType, object parameter, CultureInfo culture) {
        var command = (ICommand) value;

        return new Command(param => command.Execute(param));
    }

    public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture) {
        throw new NotImplementedException();
    }
}

If you don't rely on this specific implementation of ICommand, could you use this base interface instead?

Invalidating the layer on LayoutSubviews causes infinite loop on iOS. Inside the LayoutSubviews, tracker should only update the Frame of the layer/sublayers.

Hello, Guys!!!

Thanks develop the plugins is awesome....

Is possible control elevation(left, top, right, down)? Today some information a value about shadow width.

Position 66:13. Type LinearGradient not found in xmlns http://xamarin.com/schemas/2014/forms/background

IsCircle and IsCornerHalfHeight is not fully tested on iOS

XamarinBackgroundKit is now working only for API 23 and above. Some features like Elevation and Ripple are not backwards compatible and should be enabled only if the device meets the API specification

hello,

on Android border is always covered and cannot be made visible if the content fills the whole area.

see attached sample for repro: AndroidBug.zip

iOS seems ok in that regard. however I'm still not really sure if the intended behaviour for "Inner" is to be able to cover the border by the content.

Greetings,

Thank you for the great UI extensions. I'm currently using a gradient as such:

<bgkit:MaterialContentView Grid.Row="0" Grid.ColumnSpan="2" Background="{bgkit:BgProvider BorderWidth=4, GradientBrush={bgkit:LinearGradient Start=Blue, End=White, Angle=0}}"/>

This works fine on iphones and several android devices but is crashing on an older HTC ONE M7 running android 4.4.2.

Crash information is as such:

Java.Lang.IncompatibleClassChangeError: no method with name='getForeground' signature='()Landroid/graphics/drawable/Drawable;' in class Lcom/xamarin/forms/platform/android/FormsViewGroup;

Full Stack trace:

Any assistance would be greatly appreciated. I'd like to include gradients in my UI, but also can't isolate users with older android devices.

Thanks,

Aaron

Hello,How to use LinearGradient？

{System.NullReferenceException: Object reference not set to an instance of an object at XamarinBackgroundKit.iOS.Renderers.MaterialContentViewRenderer.TouchesEnded (Foundation.NSSet touches, UIKit.UIEvent evt) [0x00029] in /Users/chasakisd/Desktop/GitRepos/Xamarin.Forms.BackgroundKit-new/src/XamarinBackgroundKit.iOS/Renderers/MaterialContentViewRenderer.cs:99 at (wrapper managed-to-native) UIKit.UIApplication.UIApplicationMain(int,string[],intptr,intptr) at UIKit.UIApplication.Main (System.String[] args, System.IntPtr principal, System.IntPtr delegate) [0x00005] in /Library/Frameworks/Xamarin.iOS.framework/Versions/13.16.0.13/src/Xamarin.iOS/UIKit/UIApplication.cs:86 at UIKit.UIApplication.Main (System.String[] args, System.String principalClassName, System.String delegateClassName) [0x0000e] in /Library/Frameworks/Xamarin.iOS.framework/Versions/13.16.0.13/src/Xamarin.iOS/UIKit/UIApplication.cs:65 at Vitreo.App.iOS.Application.Main (System.String[] args) [0x00001] in C:\projects\Vitreo.App\Vitreo.App.iOS\Main.cs:17 }

When adding a BackgroundEffect to a Frame, any change to the background has no effect

hello,

on iOS when dynamically changing the size of a MaterialContentView some weird animations happen which i am unable to turn off. this inevitably happens for example if a ListView.ViewCell reusing/rebinding the previously disappearing cell template.

sometimes even rendering becomes incorrect for the corners when rebinding the margin: see attached example when tapping on a row. This i guess happens due to the fact that the curvature is calculated to the previous width/height of the view, but the background is stretched to the new size.

So the fix is probably listening to sizechange events of the host, and recalculating the background accordingly. (there is also an issue when IsCircle == true, and padding > 0, these maybe related to each other)

repro: IOSBug.zip

other than that: it is a great library! :)

When adding two components to a horizontal oriented stacklayout the first component applies the styles to the second.

Example: In the first component I put blue color, with shadow, and elevation, it happened that in the other that was on the side it was white color, elevation and shadow even though I entered values ​​like 0 in elevation, transparent shadow and color.

On iOS we add elevation by using the Shadow Layer of Material Components. Further testing is required for cases like when the device is rotated, in listview etc.

Add UWP support

I came with the simplest code possible, basically:

<bgKitControls:MaterialContentView Background="{bgKitMarkup:BgProvider Color=Blue}" x:Name="TestMaterialView">
    <Button Text="Change color to red" Clicked="OnButtonClicked" />
</bgKitControls:MaterialContentView>

private void OnButtonClicked(object sender, EventArgs e) {
    TestMaterialView.Background = new Background { Color = Color.Red };
}

Click the button and... nothing happens! Button stays blue.

It is a simple test case to demonstrate what I encounter in my app (can't change the elevation of a wrapped button).

I didn't test on iOS yet.

Repro on an empty app: TestApp.zip

BackgroundKit should support clipping and shadows as on Android:

When adding border with corner radius, the outer stroke was not clipped via the canvas.ClipPath(_clipPath) on Android Pie (API 28)

Left API 27, Right API 28

|

hello,

is there any reason you need an exact xf version dependency? unfortunatelly i cannot upgrade to 4.*, and stuck with 3.6

fyi you can specify package-ranges like this in the csproj:
<PackageReference Include="Xamarin.Forms" Version="(*,4.0.0.0)" />

On BackgroundEffect on iOS, when OnDetached() is called, the View's layer sometimes is disposed. Since it is disposed, the observer cannot be removed, so when the user go back, a native crash is happening saying that KVO observers must be removed when a NSObject is destroyed.

Proposal:

Use Facebook's Key-Value Observing Controller KVOController instead of manually adding observers to the view's layer. Xamarin iOS Binding was implemented by NAXAM here

XamarinBackgroundKit must be published to nuget

Is that supports Xamarin WPF?

hello,

when attempting a release build on Android i get the following linker error, even though i'm not using MaterialCard, and do invoke XamarinBackgroundKit.Android.BackgroundKit.Init();

iOS builds fine.

2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018: The "LinkAssemblies" task failed unexpectedly.
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018: Mono.Linker.MarkException: Error processing method: 'System.Void XamarinBackgroundKit.Android.Renderers.MaterialCardRenderer::.ctor(Android.Content.Context)' in assembly: 'XamarinBackgroundKit.Android.dll' ---> Mono.Cecil.ResolutionException: Failed to resolve Xamarin.Forms.Material.Android.MaterialContextThemeWrapper Xamarin.Forms.Material.Android.MaterialContextThemeWrapper::Create(Android.Content.Context)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.HandleUnresolvedMethod(MethodReference reference)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.MarkMethod(MethodReference reference)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.MarkInstruction(Instruction instruction)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.MarkMethodBody(MethodBody body)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.ProcessMethod(MethodDefinition method)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.ProcessQueue()
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    --- End of inner exception stack trace ---
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.ProcessQueue()
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.ProcessPrimaryQueue()
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Steps.MarkStep.Process()
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at MonoDroid.Tuner.MonoDroidMarkStep.Process(LinkContext context)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Mono.Linker.Pipeline.Process(LinkContext context)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at MonoDroid.Tuner.Linker.Process(LinkerOptions options, ILogger logger, LinkContext& context)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Xamarin.Android.Tasks.LinkAssemblies.Execute(DirectoryAssemblyResolver res)
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Xamarin.Android.Tasks.LinkAssemblies.Execute()
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Microsoft.Build.BackEnd.TaskExecutionHost.Microsoft.Build.BackEnd.ITaskExecutionHost.Execute()
2>C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets(2129,5): error MSB4018:    at Microsoft.Build.BackEnd.TaskBuilder.<ExecuteInstantiatedTask>d__26.MoveNext()

BackgroundKit should support gradient in border.

Android implementation on dev branch
