Check out the wikipedia article here. All four of the curves that I implemented are used as examples in the article.
To draw a curve, these are the necessary inputs:
- state: Tracks the current state of the curve.
- constants: Interpreted as instructions to perform an action such as drawing or turning.
- variables: Characters to be replaced based on the rules of production
- rules of production: Describes how to replace variables to systematically create new iterations of the curve.
THe Hilbert Curve is a great example:
variables : A, B
constants : F + −
(F == draw, + == turn right 90°, - == turn left by 90°)
state : A
production rules :
A → − B F + A F A + F B −
B → + A F − B F B − F A +
Since the initial state
is A
and the rules dictate that A → − B F + A F A + F B −
, this is what state looks like after the first iteration:
B F + A F A + F B −

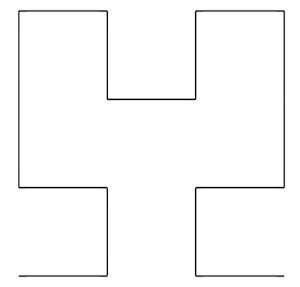

The second iteration will iterate through the previous state and replace all variables again:
+-AF+BFB+FA-F-+BF-AFA-FB+F+BF-AFA-FB+-F-AF+BFB+FA-+
##Implementation
To replace variables, I used regex:
setInstructions(parser){
this.state = this.state.replace(new RegExp(parser, 'gi'), match => {
return this.rules[match];
});
}
Once the desired state is reached, I match all the constants and follow the instructions appropriately:
const matched = this.state.match(new RegExp(parser + "|\\+|-", 'gi'));
No vectors were used in this implementation. Points are calculated using trigonometry and then connected to make a line:
this.x += Math.round((Math.cos(this.currentAngle) * canvas.height) / offset);
this.y += Math.round((Math.sin(this.currentAngle) * canvas.height) / offset);
Finally, setTimeout is used to asynchronously draw using Canvas:
if(index < array.length - 1 ){
let timeOutkey = setTimeout(() => this.async(array, index + 1), delay);
this.timeoutKeys.push(timeOutkey);
}
