Expandable Selection View

License: MIT MinSdk: 17 write: Kotlin

Expandable selection view is a dropdown selection view that unlike Android Spinners, pushes views down providing a better user experience.


iOS version

Why use it?

  • For a better user and developer experience.
  • You might also be running away from Android spinners, cause you know ๐Ÿ’ฉ

Installation

Note: This library is only compatible with AndroidX, I'll add compatibility support later on.

Gradle

In your project level gradle file

allprojects {
    repositories {
        ...
        maven { url 'https://jitpack.io' }
    }
}

In your module level gradle file

dependencies {
    ...
    implementation 'com.github.ashrafDoubleO7:ExpandableSelectionView:1.0.1'
}

Basic Usage

The library provides two views, the ExpandableSingleSelectionView and the ExpandableMultiSelectionView, they both can be used in xml like:

<com.ashraf007.expandableselectionview.ExpandableSingleSelectionView
    android:id="@+id/singleSelectionView"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    />

The component requires an ExpandableItemAdapter in order to work, for basic usage you can use an already defined BasicStringAdapter like this:

val genders = listOf(
    "Male",
    "Female",
    "Prefer not to specify"
)
// Provide a list of strings and an optional hint
val expandableAdapter = BasicStringAdapter(genders, "Select Gender..")

// Set the adapter to the component
singleSelectionView.setAdapter(expandableAdapter)

// Listen for selections
singleSelectionView.selectionListener = { index: Int? ->
    Toast.makeText(this, "SelectedIndex is $index", Toast.LENGTH_SHORT).show()
}
// Or in case of the ExpandableMultiSelectionView
multiSelectionView.selectionListener = { indices: List<Int>? ->
    Toast.makeText(this, "SelectedIndices are $indices", Toast.LENGTH_SHORT).show()
}

You can also programmatically control the following:

// To get the selected index at any time
val selectedIndex = singleSelectionView.selectedIndex

// Or in case of the ExpandableMultiSelectionView
val selectedIndices = multiSelectionView.selectedIndices

// To clear your selection
singleSelectionView.clearSelection()

// Or in case of the ExpandableMultiSelectionView
multiSelectionView.clearSelection()
// Or
multiSelectionView.unSelectIndex(1)
// Or
multiSelectionView.unSelectIndices(listOf(1, 2, 3))

// To select an index programmatically
singleSelectionView.selectIndex(1)
// Or in case of the ExpandableMultiSelectionView
multiSelectionView.selectIndex(1)
// Or
multiSelectionView.selectIndices(listOf(1, 2, 3))
/** Note:
* All selectIndex/Indices functions have an optional parameter that controls notifying the listener
* (notifyListener: Boolean = true)
**/

// Set the component's state
singleSelectionView.setState(ExpandableSelectionView.State.Expanded)

// Set an error to be shown at the bottom of the component (useful in form validation)
singleSelectionView.setError("Please select your gender")
// Or clear it
singleSelectionView.setError(null)

For a more detailed code example to use the library, please refer to the /sample app.

Design Customizations

You can customize how the component should look and behave through xml using one or more of these attributes:

<com.ashraf007.expandableselectionview.ExpandableSingleSelectionView
    android:id="@+id/singleSelectionView"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    app:background="@drawable/bg_expandable_selection_view_2"
    app:dividerVisibility="true"
    app:scrollBarsVisibility="false"
    app:animationDuration="300"
    app:maximumHeight="200dp"
    app:dividerColor="@android:color/holo_blue_light"
    />
To change the style of the component, use the following attributes:
Name Type Description Default
background reference Component's background The shape shown in the GIFs
dividerVisibility boolean Controls whether dividers should be shown under each item or not true
scrollBarsVisibility boolean Controls whether the vertical scrollbars should be shown or not true
animationDuration integer The expanding/collapsing animation duration 300 milliseconds
maximumHeight integer Lets you specify the maximum height of the scrollable part of the component INT_MAX (meaning it will by default expand to it's full size)
dividerColor color Allows you to specify a color for the divider if shown #668b999f

And of course it reacts normally to all android: prefix view attributes.

Advanced Usage

If the default look of the component isn't what you're really looking for, you can still use the component but will need to provide your own implementation for the ExpandableItemAdapter like:

(A little bit similar to a header recycler view adapter)

class CustomExpandableItemAdapter : ExpandableItemAdapter {
    override fun inflateHeaderView(parent: ViewGroup): View {
        TODO("Inflate your own header view, and maybe set a hint or a placeholder or something?")
    }

    override fun inflateItemView(parent: ViewGroup): View {
        TODO("Inflate your item view")
    }

    override fun bindItemView(itemView: View, position: Int, selected: Boolean) {
        TODO("This is where you bind your item using it's position and it's selection state," +
                "maybe bind it's info and show/hide it's selection mark?")
    }

    override fun bindHeaderView(headerView: View, selectedIndices: List<Int>) {
        TODO("This is where you bind your header view," +
                "maybe using the selectedIndices to replace the placeholder/hint?")
    }

    override fun onViewStateChanged(headerView: View, state: ExpandableSelectionView.State) {
        TODO("This is where you react to a state change," +
                "maybe you want to toggle a collapsed/expanded drawable?")
    }

    override fun getItemsCount(): Int {
        TODO("This is where you provide the exact number of items expected to be shown.")
    }
}

You can also check out the BasicStringAdapter as an example implementation.

TODO

  • Add select silently parameter to the different select functions.
  • Scroll to first item after expanding.
  • Have more control over auto collapsing the component when a choice is selected.
  • Add a sample app for the advanced usage of the component.
  • Allow component height to be customized using the number of items as input.
  • Allow different types of expanding/collapsing animations.
  • Allow different interactions to dismiss the component.
  • Add compatibility support for pre-AndroidX usage.
  • Add CI/CD to fasten things up.

Contributing

Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change.

License

ExpandableSelectionView is available under the MIT license. See the LICENSE file for more info.

expandableselectionview's People

Contributors

ahmedashrafg avatar

Stargazers

 avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar

Watchers

 avatar  avatar  avatar

expandableselectionview's Issues

Unable to set state from java file

I am trying to set the state to collapsed and using the below code
binding.contentFilterView.setState(ExpandableSelectionView.State.Collapsed); // type ExpandableSingleSelectionView
The compiler shows it in red line and does not give any error statement

Adjusting text size

Thanks for the great library. Is there any way to adjust the text sizes? I have tried in basic_expandable_item_layout.xml and in basic_expandable_header_layout.xml. However it just stays the same in my app. I can't figure out what I'm missing.

Software visualisation

Hi
I believe there is a need for software visualisation tools to support the understanding of software systems. Many software visualisation tools, both open source and commercial, have been created for many languages, but no software visualisation tool has been created for the language Kotlin.

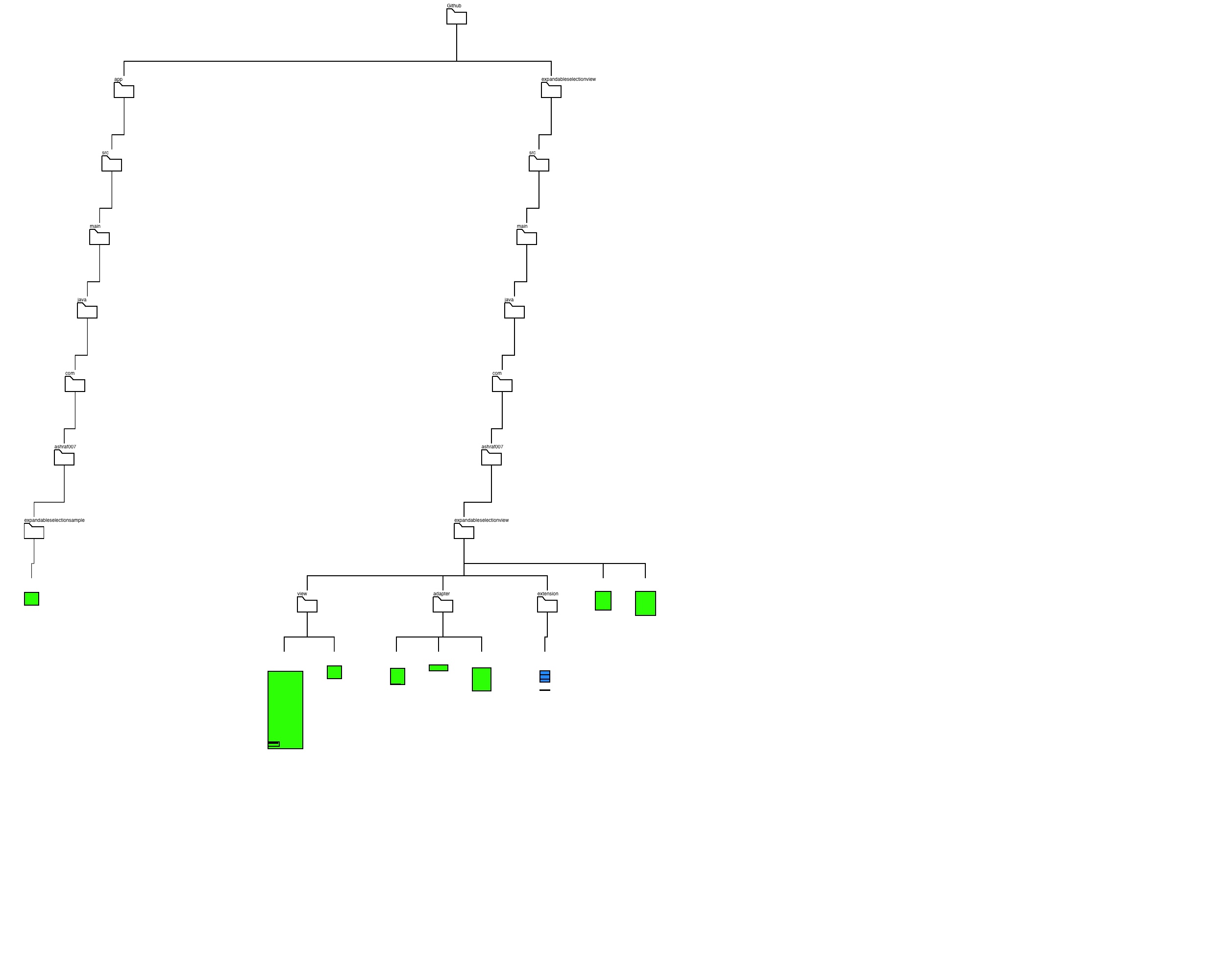

I have now however created one for my Bachelor thesis. I have used my application to visualise your project, and it shows the complexity of the project. The idea is the bigger the class or function, the more complex it is.
