Comments (6)
Hi,
The Perception Camera currently only supports timing based on simulation time. The rationale here is to be able to have deterministic simulations that produce the same output regardless of the capabilities of the underlying hardware.
With the current system, you can introduce delays between captures using the "Frames Between Captures" property of Perception Camera. In the example shown below, the camera starts capturing at frame 10, and then skips 9 frames between consecutive captures.

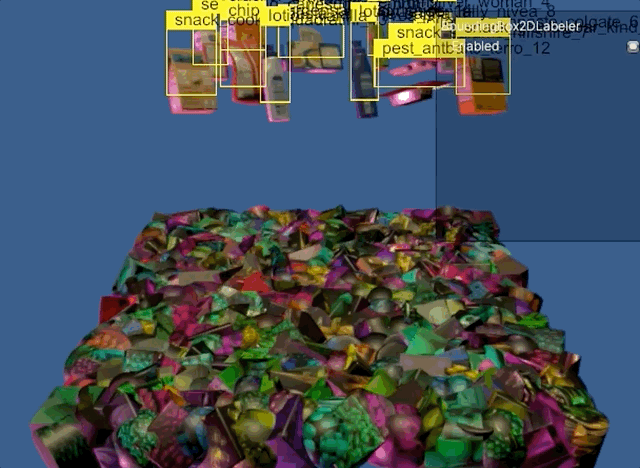

With these values, the captures look like the gif below. Notice how the bounding boxes only update periodically (every 10th frame), and not every frame.
Note than in this example, if you are using a Scenario for randomizing your simulation, you would have to set a sufficiently large number of frames for each iteration of the Scenario, in order to give your simulation time to progress before a new iteration of the Scenario is started, which resets the camera's timings.
Would this work for you? If not, can you please elaborate a bit on your use-case and how real-world time is needed?
from com.unity.perception.
Hey, yes I think this works for me. My use-case is that I'm generating raytraced synthetic images and I'm using Unity's Path Tracing. Hence, I need to wait for the path tracing to finish tracing between each capture.
from com.unity.perception.
Sounds great. Please let us know if you come across any issues once you have tried it.
from com.unity.perception.
Do you know any api that lets me know when the Path Tracing is finished? Right now, there's a loading bar that appears at the bottom of the game view and I am using this as reference and doing a trial and error.
from com.unity.perception.
Although I don't have too much experience with Unity HDRP's latest ray tracing tools, my impressions from the Unity HDRP documentation and my own experiments have indicated that the number of frames needed for the path tracing loading bar to complete is equivalent to the "Maximum Samples" setting in the path tracing volume override.
For example, if you copy the path tracing settings as shown below, I believe you would need 128 frames per iteration configured for your scenario to properly path trace your scene.
from com.unity.perception.
@sleal-unity I recently realized that too. I think this would be sufficient for me. Thanks!
from com.unity.perception.
